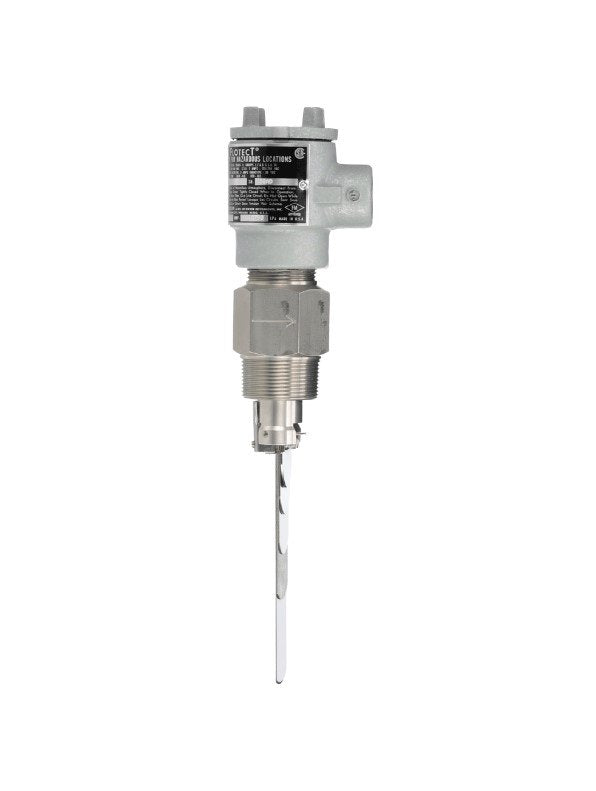

Dwyer V4-2-D-U | Vane Operated Flow Switch | brass body, universal vane
Dwyer V4-2-D-U is a Flotect vane-operated flow switch with a brass body and universal vane, protecting pipelines and equipment against reduced or lost flow. It is weatherproof and explosion-proof, for pipes up to 1-1/2" (38.10 mm).
- V4-2-D-U brass body rated to 1000 psig (69 bar)
- SPDT snap switch standard, DPDT snap switch optional on the V4-2-D-U
- Universal vane with five vane combinations for set point adjustment (V4-2-D-U)
- V4-2-D-U process connection 1-1/2" male NPT or BSPT; 3/4" female NPT conduit
- ATEX, CE, CSA, FM, IECEx and UL approvals listed for the V4-2-D-U
- V4-2-D-U standard temperature -4 to 275°F (-20 to 135°C); mount within 5° of vertical
- Specifications
- Features
- Downloads
| Part Number | V4-2-D-U |
| Brand | Dwyer |
| Product Type | Vane operated flow switch |
| Process Connection | 1-1/2" male NPT or 1-1/2" male BSPT |
| Switch Type | SPDT snap switch standard, DPDT snap switch optional |
| Weight | 4 lb 8 oz (1.9 kg) |
| Maximum Pressure | 1000 psig (69 bar) |
| Approvals | ATEX, CE, CSA, FM, IECEx, UL |
| Temperature Range | -4 to 275 °F (-20 to 135 °C) standard |
| Conduit Connection | 3/4" female NPT |
| Pipe Size | Up to 1-1/2" (38.10 mm) |
| Body Material | Brass |
| Vane | Universal, five vane combinations |
| Mounting | Within 5° of vertical |
- Excellent performance thanks to a special magnetically-activated switching configuration.
- Longer product life because to the free-swinging vane, which uses a straightforward lever arm instead of bellows, springs, or seals to activate a snap switch by drawing a magnet within the solid metal switch body.
- Long-lasting, leak-proof body made from bar stock satisfies application requirements.
- Electrical assemblies that are easily replaceable without removing the item from installation might save time and money on maintenance by avoiding the need to stop the process.
- Easy and quick installation using a threadolet, tee, or flange fitting that fits straight into a pipeline (see to the application drawings).
- High pressure ratings of 1000 psig (69 bar) for the brass body and 2000 psig (138 bar) for the SS body allow it to meet even the most demanding applications.
- meets the needs of customers for flow applications by offering the Model V4 field adjustable multilayer vane, which is calibrated especially for your application, or the Model V4-2-U,a custom vane (see set point chart).
