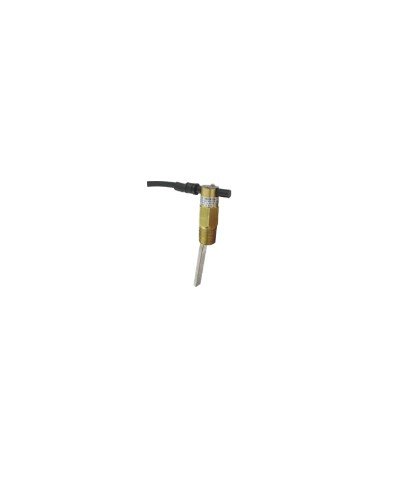

Dwyer V10SS | Mini-Size Flow Switch | 303 SS body, NO or NC
The Dwyer V10SS Flotect mini-size flow switch pairs a 303 SS body with a field-adjustable reed switch to monitor whether flow is present. Rated to 2000 psig (138 bar), the V10SS installs in the field on 1/2 to 2" pipes.
- V10SS hermetically sealed SPST reed switch, field adjustable for normally open or normally closed
- Trimmable 301 SS vane on the V10SS
- 1/2" male NPT process connection; V10SS 18 AWG, 19" (483 mm) leads
- V10SS maximum temperature 200°F (93°C); NEMA 4X (IP66) weatherproof
- CE, CSA and UR approvals; V10SS weight 5.5 oz (0.16 kg)
- Specifications
- Features
- Downloads
| Part Number | V10SS |
| Brand | Dwyer |
| Product Type | Mini-size flow switch |
| Process Connection | 1/2" male NPT |
| Switch Type | SPST reed, field adjustable NO or NC |
| Weight | 5.5 oz (0.16 kg) |
| Electrical Rating | 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res. |
| Maximum Pressure | 2000 psig (138 bar) |
| Electrical Connection | 18 AWG, 19" (483 mm), PVC jacket |
| Approvals | CE, CSA, UR |
| Pipe Size | 1/2 to 2" |
| Body Material | 303 SS |
| Maximum Temperature | 200 °F (93 °C) |
| Enclosure Rating | NEMA 4X (IP66) |
- Excellent performance with a hermetically sealed reed switch and a robust magnetically activated switching mechanism.
- Simple field switch adjustment provides application flexibility by enabling toggling between normally closed (NC) and ordinarily open (NO) conditions without requiring a modification in the electrical connection.
- Electrical assemblies that are easily replaceable without removing the item from installation might save time and money on maintenance by avoiding the need to stop the process.
- Full size, field-trimmable stainless steel vane that is calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations meets application specifications.
