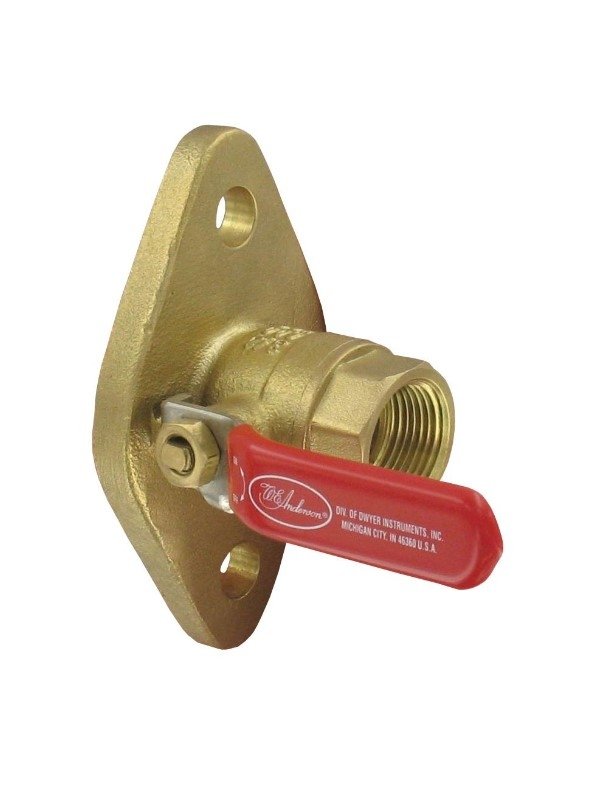

Dwyer Instruments UBV-01 | Flanged Ball valve | Full Port, 3/4"
The Dwyer UBV-01 is a 3/4" full-port flanged ball valve designed for commercial and residential shutoff applications. It features a forged brass body, chrome-plated brass ball, and PTFE ball seats and stem packing for durable service. Rated to 600 psi, the UBV-01 provides a practical solution for water and process lines that require a flanged connection.
Part Number: UBV-01
The Dwyer UBV-01 combines a forged brass body with PTFE ball seats and stem packing to provide a durable and cost-effective solution for flanged pipework. Its chrome-plated brass ball and full-port bore help maintain low flow resistance, minimizing pressure drop when the valve is fully open.
Rated to 600 psi for 3/4" applications, the UBV-01 is suitable for general shutoff duty on residential and commercial water and process lines using flanged connections. Its full-port construction provides a flow path designed to minimize restriction compared with reduced-port valve designs.
The flanged configuration makes the UBV-01 suitable for installations where bolted pipe connections are preferred over threaded or sweat connections. For the next size in the same valve range, the Dwyer UBV-02 provides a 1" full-port flanged configuration with the same 600 psi pressure rating.
Key Benefits
- 3/4" flanged connection
- Full-port design for low pressure drop when open
- Forged brass body for durable service
- Chrome-plated brass ball
- PTFE ball seats and stem packing
- Maximum pressure rating of 600 psi
- Suitable for residential and commercial shutoff applications
- Suitable for water and process lines with flanged connections
Who This Product Is Best For
The Dwyer UBV-01 is suitable for contractors, maintenance teams, facility managers, and plumbing or process-system professionals who need a 3/4" full-port flanged brass ball valve for residential or commercial shutoff applications.
How to Use
- Position the UBV-01 between the mating pipe flanges using the correct gasket for the application.
- Install and torque the flange bolts evenly in a cross pattern according to the applicable pipe and flange standard.
- Cycle the valve fully open and closed to verify smooth operation before commissioning.
Frequently Asked Questions
What connection type does the UBV-01 use?
The UBV-01 uses a flanged connection and is sized for 3/4" pipe.
What is the maximum pressure rating of the UBV-01?
The maximum pressure rating is 600 psi, with the supplied pressure range specified as -29" Hg to 600 psi (-736 mm Hg to 41.3 bar).
Is the UBV-01 a full-port ball valve?
Yes. The UBV-01 features a full-port bore designed to keep pressure drop low when the valve is fully open.
What is the UBV-01 body made of?
The valve has a forged brass body with a chrome-plated brass ball and PTFE ball seats and stem packing.
What is the maximum operating temperature?
The maximum operating temperature is -40°F to 365°F (-40°C to 185°C).
Does GeneralTech Shop deliver the UBV-01 across the UAE?
Contact GeneralTech Shop at +971 6 5436933 to confirm availability and delivery timelines for your emirate.
What is the difference between the UBV-01 and UBV-02?
The UBV-01 and UBV-02 are adjacent sizes in the same valve range. Both use the same body material, full-port design, and 600 psi pressure rating. The UBV-01 is 3/4", while the UBV-02 is 1".
