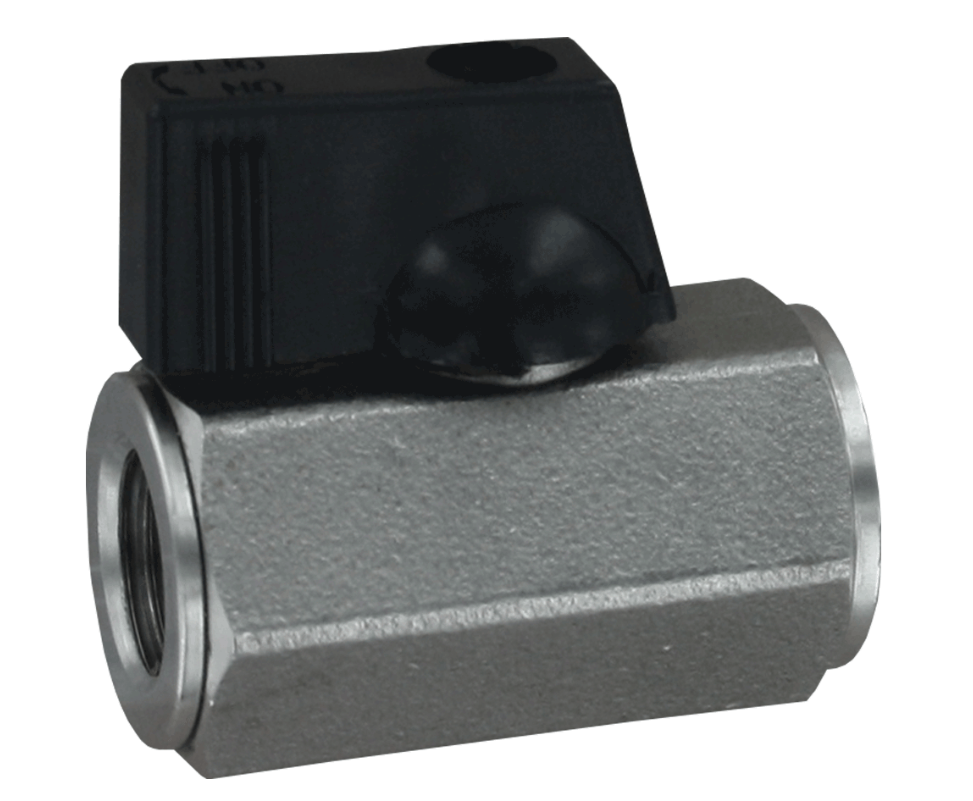

Dwyer Instruments SMV2-WF1 | Mini stainless steel ball valve | 1/8" NPT female x female
The Dwyer SMV2-WF1 is a compact 1/8" NPT mini stainless steel ball valve designed for instrumentation, sample lines, and tight-clearance installations. Its female x female configuration allows direct threaded connection to compatible lines without requiring an adapter. With a cast 316 stainless steel body and 316 stainless steel internal components, it provides a practical solution for small process and instrumentation applications.
Part Number: SMV2-WF1
The Dwyer SMV2-WF1 mini ball valve is designed for applications where a conventional full-size valve may not fit because of limited installation space. Its compact construction makes it suitable for instrument panels, sample lines, gauge isolation points, and other confined installations.
The valve features a cast 316 stainless steel (CF8M) body along with a 316 stainless steel ball, insert, and stem. A PTFE ball seat provides a reliable, low-torque seal for smooth valve operation.
The 1/8" NPT female x female connection allows the valve to be threaded directly into compatible piping or instrumentation connections. Despite its compact size, the SMV2-WF1 is rated for pressures up to 800 psi (51.1 bar) WOG, making it suitable for small process and instrumentation lines operating at meaningful system pressures.
If a different connection arrangement is required, the Dwyer range also includes the SMV2-WM1, which features a 1/8" NPT male x female configuration.
Key Benefits
- 1/8" NPT female x female connection
- Compact design for instrument panels and tight-clearance installations
- Cast 316 stainless steel (CF8M) body
- 316 stainless steel ball, insert, and stem
- PTFE ball seat for a reliable, low-torque seal
- Maximum pressure rating of 800 psi (51.1 bar) WOG
- Suitable for instrumentation, sample lines, and small process lines
Who This Product Is Best For
The Dwyer SMV2-WF1 is suitable for instrumentation and controls technicians, process engineers, and maintenance teams who need a compact stainless steel ball valve for 1/8" NPT applications. It is particularly useful for sample lines, gauge isolation, instrument panels, and installations where available space is limited.
How to Use
- Thread the SMV2-WF1 into the 1/8" NPT line at the required isolation or sample point.
- Use an appropriate thread sealant and tighten carefully without over-torquing the compact valve body.
- Cycle the valve fully open and closed to confirm smooth operation before commissioning.
Frequently Asked Questions
What connection type does the SMV2-WF1 use?
The SMV2-WF1 uses a 1/8" NPT female x female connection.
What is the Dwyer SMV2-WF1 made of?
It has a cast 316 stainless steel (CF8M) body with a 316 stainless steel ball, insert, and stem. The ball seat is made of PTFE.
What is the maximum pressure rating of the SMV2-WF1?
The maximum pressure rating is 800 psi (51.1 bar) WOG at 1/8" NPT.
What is the maximum operating temperature?
The maximum operating temperature is 212°F (100°C).
Why choose a mini ball valve instead of a standard-size valve?
The compact design of the SMV2-WF1 allows it to fit into instrument panels, sample lines, and other installations where a standard-size ball valve may not have sufficient clearance.
Does GeneralTech Shop deliver the SMV2-WF1 across the UAE?
Contact GeneralTech Shop at +971 6 5436933 to confirm availability and delivery timelines for your emirate.
What is the difference between the SMV2-WF1 and SMV2-WM1?
Both are 1/8" NPT mini stainless steel ball valves with an 800 psi (51.1 bar) WOG rating. The SMV2-WF1 has female x female connections, while the SMV2-WM1 has male x female connections.
