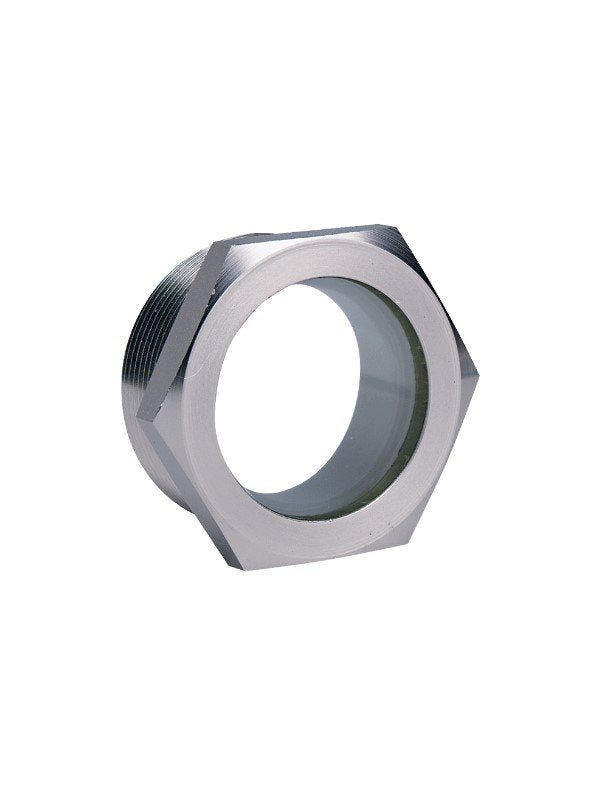

Dwyer SFI-550-3/8 | Sight Window | 3/8" male NPT, 125 psig
The Dwyer SFI-550-3/8 is a Series 550 glass sight window with a plated steel body and a 3/8" male NPT connection. Installed in a pipeline, tank or vessel, the 3/8" window gives operators a view of fluid level, flow and condition without interrupting the process.
- Series 550 runs from 1/4" to 2" NPT; this SFI-550-3/8 has a 3/8" male NPT thread
- Glass window in a plated steel body on the SFI-550-3/8
- 3/8" model rated to 125 psig (8.6 bar)
- SFI-550-3/8 handles up to 200°F (93°C)
- Specifications
- Features
- Downloads
| Part Number | SFI-550-3/8 |
| Brand | Dwyer |
| Type | Sight Window |
| Connection | 3/8" male NPT |
| Max. Operating Pressure | 125 psig (8.6 bar) |
| Window | Glass |
| Body Material | Plated steel |
| Max. Operating Temperature | 200 °F (93 °C) |
- Glass to metal connection for maximum dependability.
- Convenient hex wrench surfaces on plated steel bodies make installation simple.
- Windows are clean, smooth, and flush with the front face; they don't have any nooks or crannies where dirt could gather.
