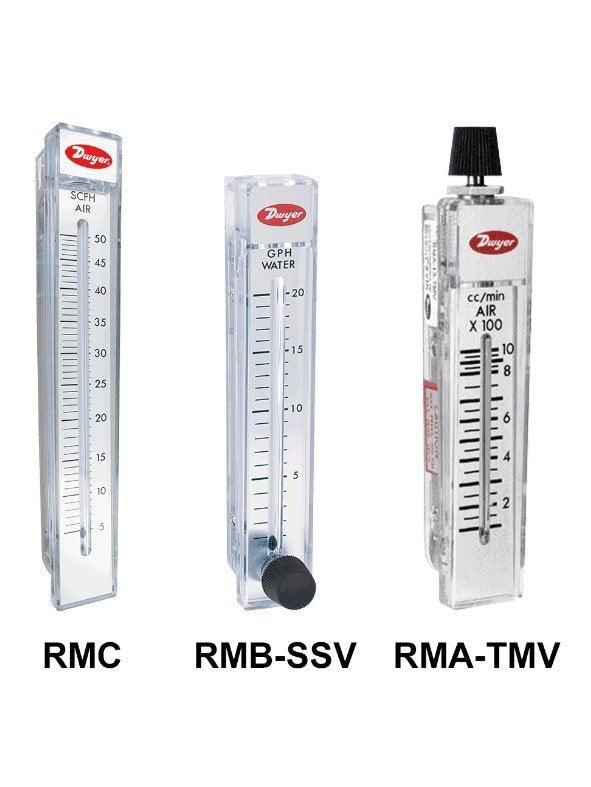

Dwyer RMB-54-SSV | Rate-Master Flowmeter | 20-200 SCFH Air, 5" Scale, Stainless Steel Valve

Part Number : RMB-54-SSV

Dwyer RMB-54-SSV covers 20-200 SCFH air on a direct-reading 5" (127 mm) Rate-Master scale, supplied with a stainless steel valve. Intended for general gas and liquid service, this RMB series unit (RMB-54-SSV) mounts on a surface or in a panel.

  • Range 20-200 SCFH air on the 5" (127 mm) scale, stainless steel valve fitted
  • 3% accuracy and 1/4" female NPT process connections on the RMB-54-SSV
  • RMB-54-SSV rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMB-54-SSV: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMB-54-SSV body swaps within its 5" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 13 oz (368.5 g); the RMB-54-SSV meets RoHS II (EU Directive 2011/65/EU)
