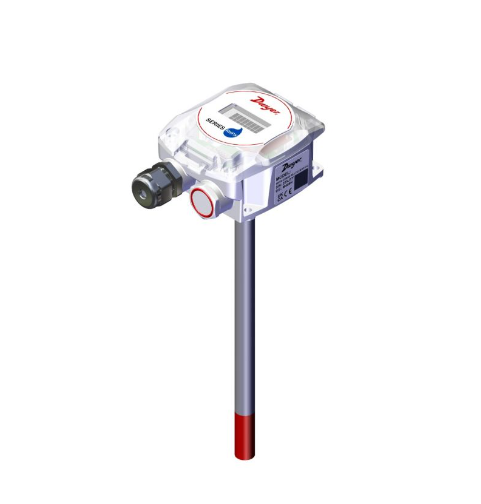

Dwyer RHPX-3SDA0-00-LCD | Duct Humidity/Temperature Transmitter | ±3% RH, Small Enclosure, Analog, LCD
Rated ±3% (10 to 90% RH @ 25°C), the Series RHPX Dwyer RHPX-3SDA0-00-LCD is a small-enclosure duct unit with analog humidity and temperature outputs and a two-line, eight-character LCD. The RHPX-3SDA0-00-LCD suits building management in commercial HVAC, clean rooms, data centres and museums.
- RHPX-3SDA0-00-LCD: LCD version: operating range -20 to 60°C (-4 to 140°F), storage -30 to 70°C
- Humidity and temperature outputs: 4-20 mA, 0-5 V DC or 0-10 V DC at 5 mA max, field selectable on the RHPX-3SDA0-00-LCD
- Analog power: 10 to 35 VDC for 4-20 mA; 15 to 35 VDC or 15 to 29 VAC for voltage output (RHPX-3SDA0-00-LCD)
- RHPX-3SDA0-00-LCD: IP66 enclosure in UL 94 V-0 material; duct version weighs 198.4 g (0.44 lb)
- Specifications
- Features
- Downloads
| Part Number | RHPX-3SDA0-00-LCD |
| Brand | Dwyer |
| Series | RHPX |
| Mounting | Duct, small enclosure |
| RH Accuracy | ±3% (10 to 90% RH @ 25 °C) |
| Weight | 198.4 g (0.44 lb) |
| Enclosure Rating | IP66 |
| Outputs | 4-20 mA, 0-5 V DC or 0-10 V DC, field selectable |
| Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Display | LCD, 2 lines x 8 characters |
| Humidity Range | 0 to 100% |
| Temperature Range | -40 to 60 °C (-40 to 140 °F) |
| Power (Analog) | 10-35 VDC (4-20 mA); 15-35 VDC or 15-29 VAC (voltage) |
| Resolution | 0.1% RH; 0.1 °F/°C |
- Less expensive installation thanks to several on-board sensors.
- Outdoor fences with UV protection require little upkeep.
- Installation in the plenum space is permitted due to UL 2043 compliance.
- With the detachable terminal block, fixed lid, and cable management, installation is simple.
