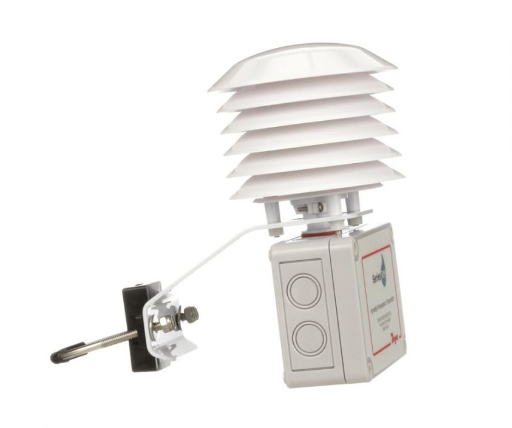

Dwyer RHP-2O10 | OSA Humidity Transmitter | ±2% RH, 4-20 mA RH
With a 4-20 mA humidity output only, the Dwyer RHP-2O10 is an outside air (OSA)-mount unit measuring humidity to ±2% (10 to 90% RH @ 25°C). The RHP-2O10 belongs to Series RHP and uses a capacitance polymer humidity sensor.
- Supply for the 4-20 mA version: 10-35 VDC (loop powered) (RHP-2O10)
- RHP-2O10: Measures 0 to 100% RH; drift below 1% RH per year, hysteresis ±1%, response time 15 s
- OSA housing: polycarbonate, NEMA 4X (IP66), 1/2" (22.3 mm) conduit connection, 1 lb (0.45 kg) on the RHP-2O10
- Operating range -40 to 140°F (-40 to 60°C) (RHP-2O10)
- Specifications
- Features
- Downloads
| Part Number | RHP-2O10 |
| Brand | Dwyer |
| Series | RHP |
| Power | 10-35 VDC (loop powered) |
| Response Time | 15 s |
| Drift | <1% RH/year |
| Mounting | OSA |
| RH Accuracy | ±2% (10 to 90% RH @ 25 °C) |
| RH Range | 0 to 100% RH |
| Weight | 1 lb (0.45 kg) |
| RH Output | 4-20 mA |
| Enclosure Rating | NEMA 4X (IP66) |
- Lower installation costs when temperature and humidity are combined.
- With 2%, 3%, and 5% accuracy and a wide range of temperature sensors, there is a wide application environment.
- Lower system operating costs thanks to the radiation barrier that shields the sensor from heat radiation.
