Dwyer PV31 | Solenoid Pilot Valve | 240 VAC, for 3-9/16" SAV Actuator
Part Number : PV31

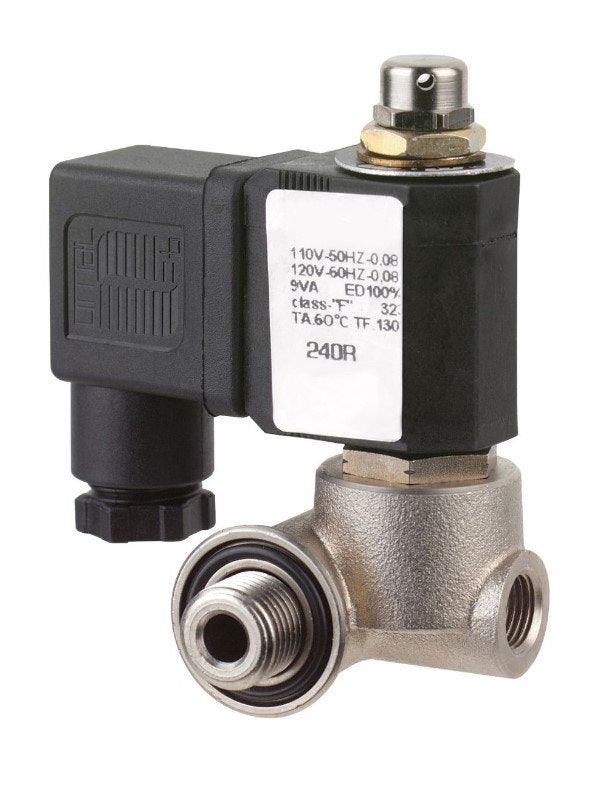

Mounting directly onto 3-9/16" Series SAV angle seat valve actuators, the Dwyer PV31 is a 240 VAC three-way normally closed solenoid pilot valve. An electrical signal to the PV31 shifts the actuator from closed to open, or the reverse for normally open valves, and the valve returns to its normal position once the signal stops.
- Actuator port 1/4" BSP and 1/8" NPT pilot media port on the PV31
- PV31 pilot media: air, water or inert gases (water needs a drain line on the exhaust)
- IP65 with the supplied DIN connector; manual override on the PV31
- Niploy-coated brass body with FKM seal; the PV31 mounts by banjo connection
- PV31 ratings: 150 psig (10.3 bar), -10 to 60°C
