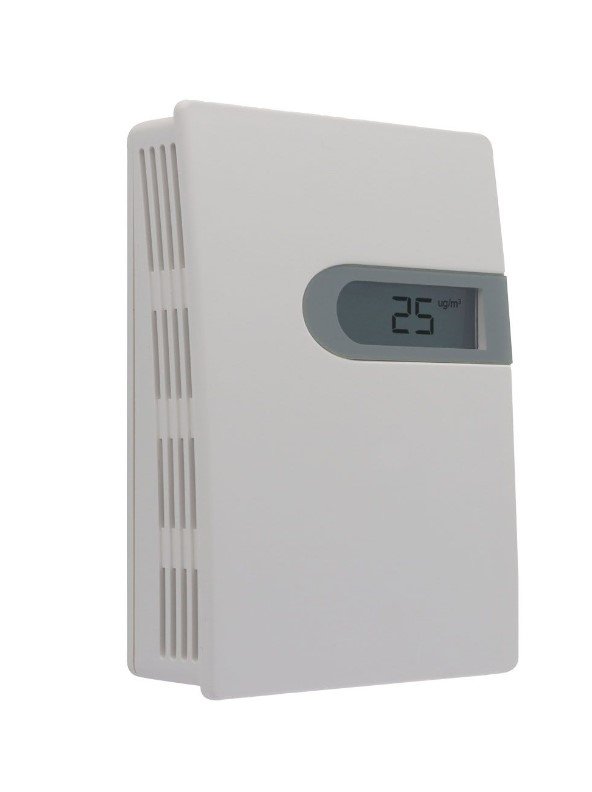

Dwyer PMI-10WC-RLY-LCD | Particulate Transmitter | PM10 wall mount, 4-20 mA/0-10 V, relay, LCD, Modbus
Part Number : PMI-10WC-RLY-LCD
Measuring 0.3-10 µm particles over 0-600 µg/m³, the Dwyer PMI-10WC-RLY-LCD is a wall-mounted PM10 transmitter that uses laser scattering for indoor air quality monitoring in rooms such as offices. Signals from the PMI-10WC-RLY-LCD are 4-20 mA, 0-10 V, an SPST relay and RS-485 Modbus RTU, and it carries an LCD display.
- Resolution 1 µg/m³ and response under 10 s in continuous mode on the PMI-10WC-RLY-LCD
- Wall housing of the PMI-10WC-RLY-LCD: polycarbonate (UL 94 V-0), IP30, 200 g
- PMI-10WC-RLY-LCD supply 16-28 VAC or 6-35 VDC; operating 0 to 50°C, 0-95% RH non-condensing
- SPST relay on the PMI-10WC-RLY-LCD rated 3 A at 30 VDC/250 VAC
- PMI-10WC-RLY-LCD accuracy: ±10 µg/m³ from 0-100 µg/m³ and ±10% of reading from 100-600 µg/m³ (25°C, 50% RH)
