Dwyer PAFS-1009 | Averaging Flow Sensor | 19-13/32" (49.29 cm) insertion

Name: Dwyer PAFS-1009 | Averaging Flow Sensor | 19-13/32" (49.29 cm) insertion
Brand: Dwyer
SKU: PAFS-1009
Availability: OutOfStock

Part Number : PAFS-1009

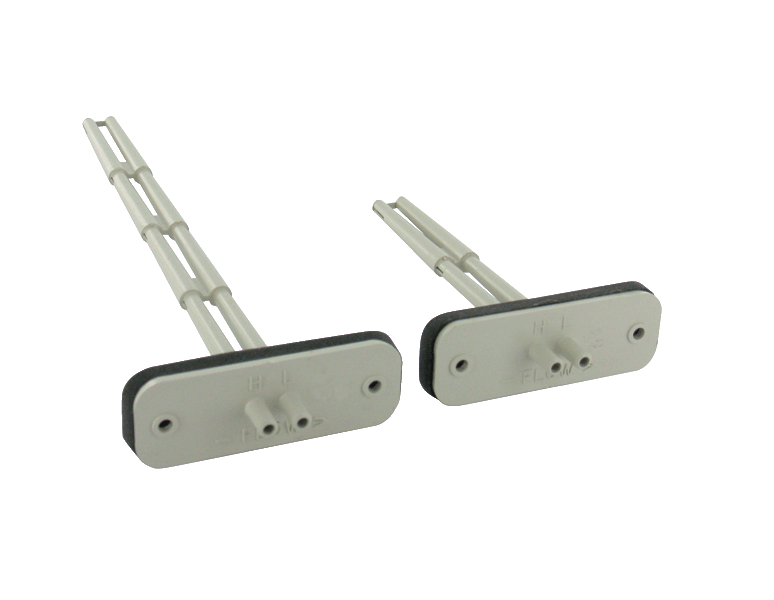

With a 19-13/32" (49.29 cm) insertion length, the Dwyer PAFS-1009 averaging flow sensor measures velocity pressure in the inlet section of variable air volume and fan terminal units. Beyond terminal units, the PAFS-1009 can detect differential pressure at various locations in main or branch ducts.

PAFS-1009 insertion length: 19-13/32" (49.29 cm)
Polycarbonate construction; wetted parts ABS/polycarbonate (UL94-5V) on the PAFS-1009
Mounts via an integral flange with gasket; PAFS-1009 connects to 1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
PAFS-1009 operating temperature 40 to 120°F (4 to 49°C), storage -40 to 140°F (-40 to 60°C)
Weight 1 oz (28 g); PAFS-1009 meets EU RoHS II (2011/65/EU) technical requirements

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Part Number	PAFS-1009
Brand	Dwyer
Product Type	Averaging flow sensor
Series	PAFS-1000
Insertion Length	19-13/32" (49.29 cm)
Material	Polycarbonate
Wetted Material	ABS/polycarbonate (UL94-5V)
Process Connection	1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
Port Size	1/4"
Mounting	Integral flange with gasket
Operating Temperature	40 to 120°F (4 to 49°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Weight	1 oz (28 g)
Approvals	RoHS II (EU Directive 2011/65/EU)

You can use a simple mounting flange with rectangular or round ducts.
Total pressure is sensed by the "H" port, and static pressure is sensed by the "L" port.
The differential, also known as velocity pressure, exists between these signals.
In order to fit box size diameters of 4 to 16" (10.16 to 40.64 cm), up to four sensing points and lengths of 3-5/32to 9-29/32" (8.02 to 25.62 cm) are available.
