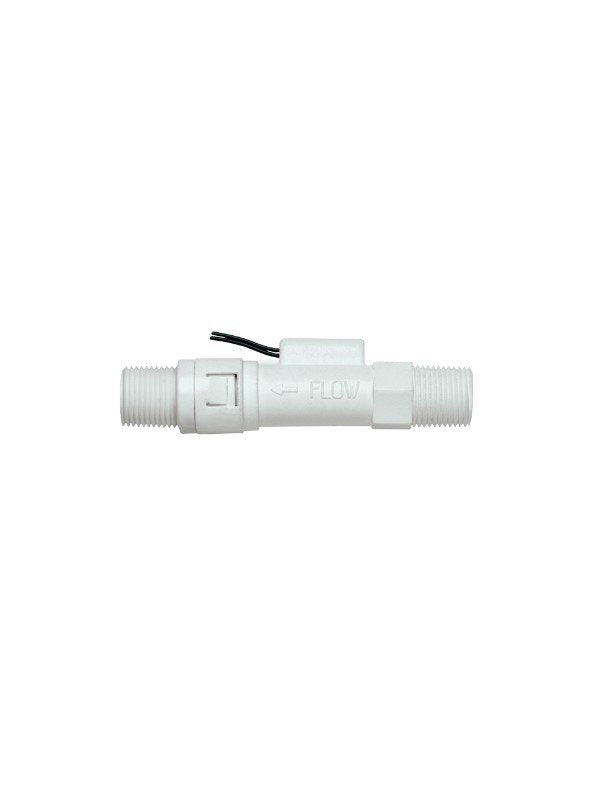

Dwyer P3-42 | Polypropylene Flow Switch | set point 0.50 GPM (1.89 LPM), 1/4" quick disconnect
With 1/4" quick disconnect ports and a 0.50 GPM (1.89 LPM) actuation set point, the Dwyer P3-42 is a polypropylene flow switch for suitable liquids. The P3-42 is designed for use with compatible liquids.
- P3-42 SPST, N.O. switch rated .08 A @ 120 VAC
- Polypropylene housing, PPS composite piston, 316 SS spring and fluorocarbon O-ring on the P3-42
- P3-42 accuracy 20% of set point
- Rated 125 psig (8.6 bar) at 70°F (21°C); P3-42 temperature 0 to 212°F (-18 to 100°C)
- 24" (60.96 cm) 22 AWG leads; 100 micron filtration recommended for the P3-42
- Specifications
- Features
- Downloads
| Part Number | P3-42 |
| Brand | Dwyer |
| Product Type | Polypropylene flow switch |
| Process Connection | 1/4" quick disconnect |
| Switch Type | SPST, N.O. |
| Weight | 5 oz (0.14 kg) |
| Electrical Rating | .08 A @ 120 VAC |
| Maximum Pressure | 125 psig (8.6 bar) @ 70 °F (21 °C) |
| Electrical Connection | 24" (60.96 cm) polymeric wire leads, 22 AWG |
| Temperature Range | 0 to 212 °F (-18 to 100 °C) |
| Actuation Set Point | 0.50 GPM (1.89 LPM) |
| Accuracy | 20% of set point |
| Wetted Materials | Polypropylene housing; PPS composite piston; 316 SS spring |
| Required Filtration | 100 microns or better |
- A hermetically sealed SPST magnetic reed switch is incorporated into the piston design.
- A range of fitting options allow for simple integration with existing pipes.
- When the adapter is taken out of the switch, the selectable shut-off valve will cut off the line stream.
- Economical design.
