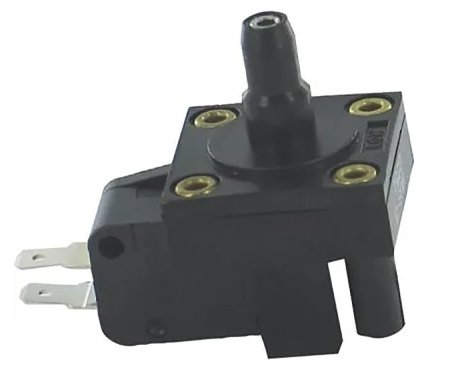

Dwyer MVS-5 | Miniature Vacuum Switch | 0.13-1.16 psi | 10 A 125/250 VAC
The Dwyer MVS-5 miniature vacuum switch covers 0.13 to 1.16 psi on air and is rated 10 A at 125/250 VAC. Designed for OEM equipment, it connects on a 1/8 in NPT port and responds quickly. The MVS-5 is adaptable to different OEM designs, and medical equipment is another common application.
- 10 A electrical rating
- Minimum life expectancy of 10 million cycles
- Lightweight, compact build
- Used in pump control, HVAC, office and dairy equipment
- Specifications
- Features
- Downloads
| Part Number | MVS-5 |
| Brand | Dwyer |
| Series | MVS |
| Range | 0.13-1.16 psi |
| Media | Air |
| Current Rating | 10 A |
| Voltage | 125/250 VAC |
| Port | 1/8 in NPT |
| Life | Min. 10 million cycles |
- High switch cycle means long life for extended duty applications.
