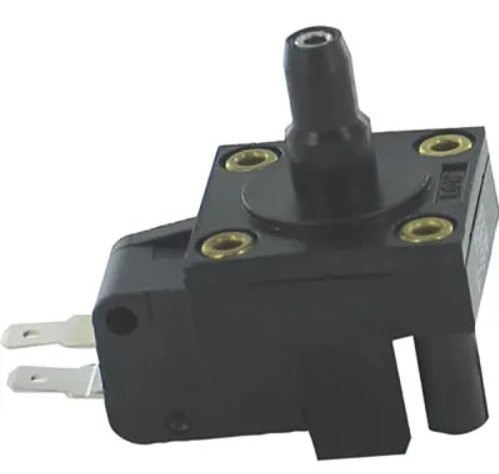

Dwyer MVS-4 | Miniature Vacuum Switch | 0.01-0.1 psi | 3 A 125/250 VAC
Dwyer MVS-4 is an MVS miniature vacuum switch for 0.01 to 0.1 psi on air, rated 3 A at 125/250 VAC with a 1/8 in NPT port. Small, light and made for OEM use, it suits pump control, medical equipment, dairy systems and appliances. Office equipment is another common use.
- Lowest pressure range in this MVS group
- Fast switching response
- Minimum life of 10 million cycles
- Customisable for OEM designs
- Specifications
- Features
- Downloads
| Part Number | MVS-4 |
| Brand | Dwyer |
| Series | MVS |
| Range | 0.01-0.1 psi |
| Media | Air |
| Current Rating | 3 A |
| Voltage | 125/250 VAC |
| Port | 1/8 in NPT |
| Life | Min. 10 million cycles |
- The set points are as follows: minimum: 3 in w.c. (8 mbar); maximum: 8 in w.c. (20 mbar).
- Polyurethane diaphragm with polycarbonate enclosure.
- SPDT switch, generally closed or normally open.
- Range of acceptable temperatures: 40 to 150°F (4 to 66°C).
- Brass terminals connected to silver.
- Using terminals to establish an electrical connection For use with quick disconnects, a 0.187" x 0.20" spade.
- Long life for extended duty applications is indicated by a high switch cycle.
- Male NPT process connector, 1/8".
- To install, insert #2 screws through eyelets.
- Modifiable set point.
