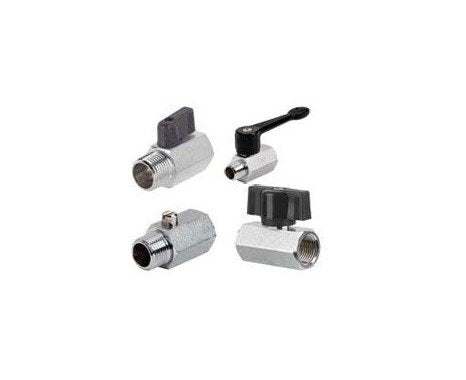

Dwyer Instruments MVB-LF1 | Mini Brass Ball Valve | Lever handle | 450 psi | 1/8"
A compact 1/8" mini brass ball valve with a lever handle and female x female NPT connections, rated to 450 psi CWP for tight-space shutoff applications. Genuine Dwyer stock at General Tech Services LLC, UAE. Free UAE-wide shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. MVB-LF1 | Size: 1/8" | Connection: Female x Female NPT | Handle: Lever | Pressure Rating: 450 psi CWP
Product Description
The Dwyer MVB-LF1 is a compact 1/8" mini brass ball valve designed for manual shutoff where installation space is limited. Its female x female NPT process connections provide a practical connection arrangement for compact panels, instrumentation assemblies and skid-mounted systems.
The valve uses a lever handle for straightforward manual operation and incorporates pure PTFE ball seats for bubble-tight shutdown. A double seal mechanism allows the valve to be installed in either flow direction, providing flexibility when routing process lines.
The body and ball are constructed from chrome-plated brass for a compact and durable valve assembly. A fluoroelastomer O-ring stem seal provides sealing around the valve stem.
Rated from -29" Hg vacuum to 450 psi CWP (31 bar), the MVB-LF1 is suitable for compressed air, instrumentation and general utility shutoff duties where a compact manual valve is required.
Ready to order the MVB-LF1? Speak to our team. Call +971 6 5436933.
Key Benefits
- Compact mini valve body for tight installation spaces
- 1/8" female x female NPT process connections
- Bubble-tight shutdown using pure PTFE ball seats
- Double seal mechanism supports bidirectional installation
- Chrome-plated brass body and ball for durability
- Lever handle for simple manual operation
- Rated up to 450 psi CWP
- Suitable for compressed air, instrumentation and general utility shutoff applications
- Genuine Dwyer stock with free UAE-wide shipping
Who This Product Is Best For
- Panel builders working with limited installation space
- Instrumentation systems requiring compact manual isolation valves
- Skid and packaged equipment manufacturers
- Compressed-air and utility systems requiring compact shutoff
- Installations where bidirectional valve installation provides greater piping flexibility
How to Specify & Commission It
- Confirm that the MVB-LF1's 1/8" female x female NPT connections match the fittings and piping system.
- Install the valve in the required line orientation; its double seal mechanism allows bidirectional installation.
- Operate the lever handle to open or close the valve as required.
- Check all connections for leakage and verify bubble-tight shutdown before placing the system into full operation.
- Confirm that the system pressure and temperature remain within the valve's specified operating limits.
Frequently Asked Questions
What size is the Dwyer MVB-LF1?
The MVB-LF1 is a 1/8" mini brass ball valve with female x female NPT end connections.
What is the maximum pressure rating?
The valve is rated to 450 psi CWP, with an operating range from -29" Hg vacuum to 450 psi (31 bar).
Can the MVB-LF1 be installed in either flow direction?
Yes. Its double seal mechanism allows bidirectional operation, so the valve can be installed in either flow direction.
What handle style does the MVB-LF1 use?
The valve uses a lever handle for manual opening and closing.
What materials are used in the valve?
The valve body and ball are made from chrome-plated brass. The stem uses a fluoroelastomer O-ring seal, while the ball seats are made from PTFE.
What applications is the MVB-LF1 suitable for?
The MVB-LF1 is suited to compressed air, instrumentation and general utility shutoff applications, particularly where installation space is limited.
What type of connections does the MVB-LF1 have?
The valve has female x female NPT process connections in a 1/8" pipe size.
Is genuine Dwyer stock available with UAE shipping?
Yes. General Tech Services LLC supplies genuine Dwyer stock with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
