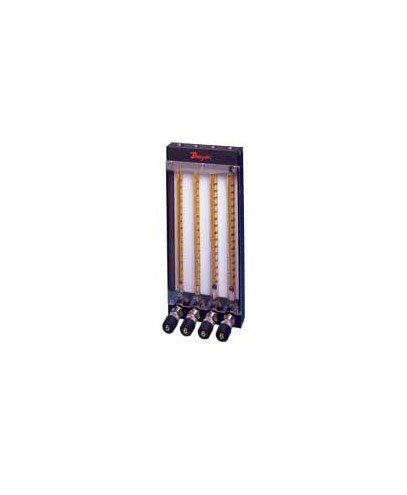

Dwyer MTF-2632 | Multitube Flowmeter Frame | 65 mm, 3 Tubes, Common Pattern, 316 SS Wetted

Name: Dwyer MTF-2632 | Multitube Flowmeter Frame | 65 mm, 3 Tubes, Common Pattern, 316 SS Wetted
Brand: Dwyer
SKU: MTF-2632
Availability: OutOfStock

Part Number : MTF-2632

The Dwyer MTF-2632 is a 65 mm multitube flowmeter frame holding 3 tubes in a common flow pattern, with 316 stainless steel wetted parts. Part of the Series MTF multitube flow system, the MTF-2632 suits multichannel metering, mixing or monitoring.

Holds 3 flow tubes (65 mm frame)
Common flow pattern on a 65 mm frame with 316 stainless steel wetted parts
316 stainless steel wetted, Fluoroelastomer O-rings, 3-tube 65 mm frame
Polycarbonate shield on a 3-tube 65 mm 316 stainless steel frame (common)
200 psig, 121°C limits for this 65 mm 3-tube 316 stainless steel common frame

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Part Number	MTF-2632
Brand	Dwyer
Frame Size	65 mm
Tube Capacity	3
Flow Pattern	Common
Wetted Parts	316 SS
O-rings	Fluoroelastomer
Connection	1/8" female NPT
Front Shield	Polycarbonate
Side Panels	Black anodised aluminium
Max Operating Pressure	200 psig (13.8 bar)
Max Operating Temperature	250°F (121°C)
Repeatability	±0.25% of scale reading
Mounting	Vertical

Systems can have their functionality and design altered to match the needs of a particular application.
Ability to hold up to six distinct flow tubes, offering flexibility in flow patterns and capacity to meet diverse requirements.
The exact control and monitoring of fluid flow rates is made possible by the variable flow capacities that each flow tube can have.
Perfect for multichannel uses including mixing, metering, or monitoring; offers a complete solution for intricate fluid handling procedures.
Has a modular architecture that facilitates simple assembly and reconfiguration of the system in response to shifting needs or preferences.
Ideal for a variety of uses necessitating specialized flow systems, such as research applications, laboratory tests, and industrial operations.
Built with sturdy materials to guarantee lifespan and dependability under varied working circumstances.
