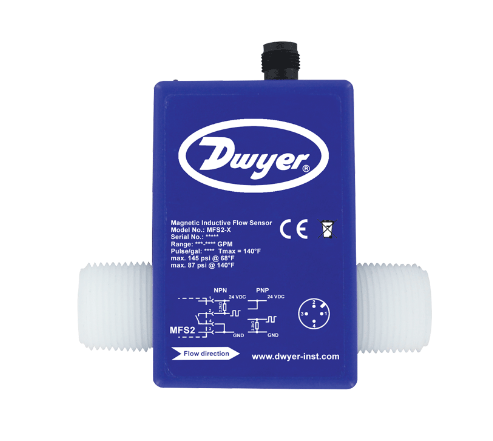

Dwyer MFS2-4 | Magnetic Inductive Flow Sensor | 1.3 to 26.4 GPM, 1" male NPT
Part Number : MFS2-4
Dwyer MFS2-4 is a magnetic inductive flow sensor for liquids with a range of 1.3 to 26.4 GPM (5.0 to 100 LPM) and a 1" male NPT process connection. The MFS2-4 offers square-wave frequency (NPN or PNP) and 4-20 mA analog outputs with a response time under 100 ms.
- MFS2-4 accuracy ±1% of reading with 1% repeatability
- 316 SS electrodes and PVDF process connections on the MFS2-4
- MFS2-4 pressure rating 145 psi (10 bar) at 68°F (20°C), 87 psi (6 bar) at 140°F (60°C)
- Process temperature 14 to 140°F (-10 to 60°C); minimum medium conductivity 50 µS/cm for the MFS2-4
- MFS2-4 power 24 VDC ±10%, M12x1 plug, NEMA 4 (IP65), weight 8 oz (226.8 g)
