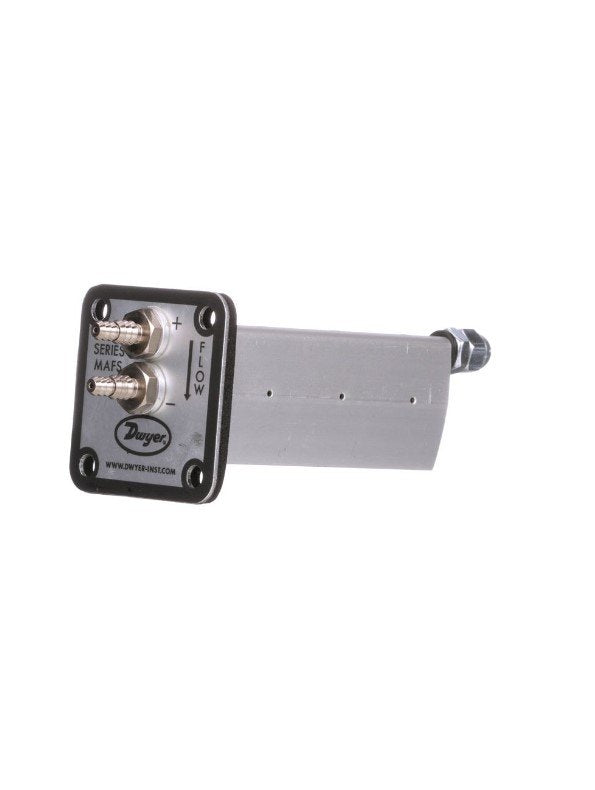

Dwyer MAFS-100MM | Metal Averaging Air Flow Sensor | 100 mm Probe, 400-12,000 fpm
Part Number : MAFS-100MM
The Dwyer MAFS-100MM is a 100 mm metal averaging flow sensor from the MAFS series, made for use with Dwyer air velocity gauges, transmitters and switches. Evenly spaced total and static pressure points along the MAFS-100MM probe measure the velocity pressure in a duct.
- 100 mm aluminium AA6063 probe
- K-factor 0.82 for the 100 mm length
- MAFS-100MM accuracy: ±2% FS from 400 to 9000 FPM (45.7 m/s)
- Design flow of the MAFS-100MM: 400 fpm (2 m/s) minimum, 12,000 fpm (60.91 m/s) maximum
- Dual barb fitting on the MAFS-100MM takes 3/16" or 1/4" ID tubing
- MAFS-100MM rated to 400°F (204°C); gasket -31 to 230°F (-35 to 110°C); RoHS II compliant
Free Saudi Arabia shipping available
For pricing, please contact our experts.
