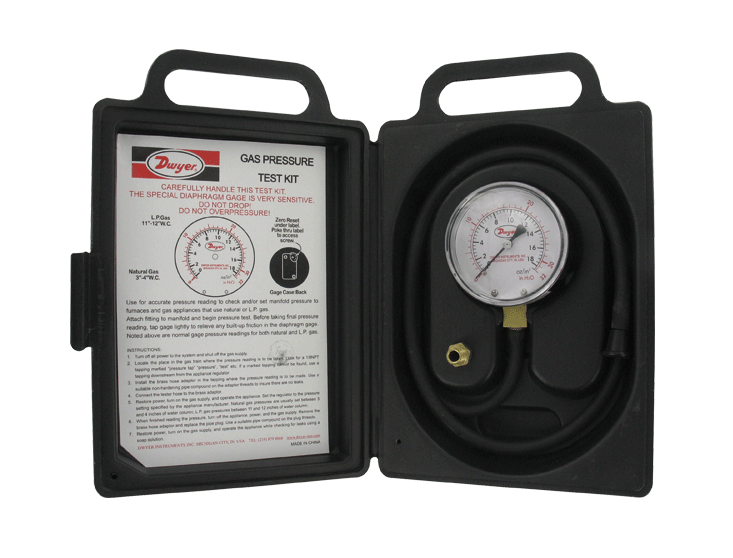

      Dwyer Instruments LPTK-03 | Low pressure gas test kit | 0-4 kPa & 0-40 mbar
For testing LP and natural gas lines and controls, use the Series LPTK, LPTK-03 Gas Pressure Test Kit. The gauge on the kit indicates whether there is appropriate pressure or a leak. With an easy-to-use calibration screw on the back, each of the two gage ranges in the Series LPTK Gas Pressure Test Kit is accurate to within 3% of full scale. Compared to a manometer, it is simpler to use and comes with a protective case for handling safety.

- Specifications
- Features
- Downloads
| Accuracy | +/-3% full scale |
| Casing | ABS plastic |
| Connection | Process: 1/8" NPT, brass hose barb |
| hose | Rubber, 36" (91.4 cm) |
| Housing Material | Steel with black finish |
| Material | Wetted: Gage: brass; Hose: rubber |
| Maximum Operating Pressure | 110% of range |
| Maximum operating temperature | -40 to 150oF (-40 to 65oC) |
| Size | 2-1/2" (63 mm) |
| Tube | Nipple: Rubber |
| Weight | 1.75 lb (0.8 kg) |
- A calibration screw located on the gage's rear.
- Easy-to-use interface that is straightforward.
