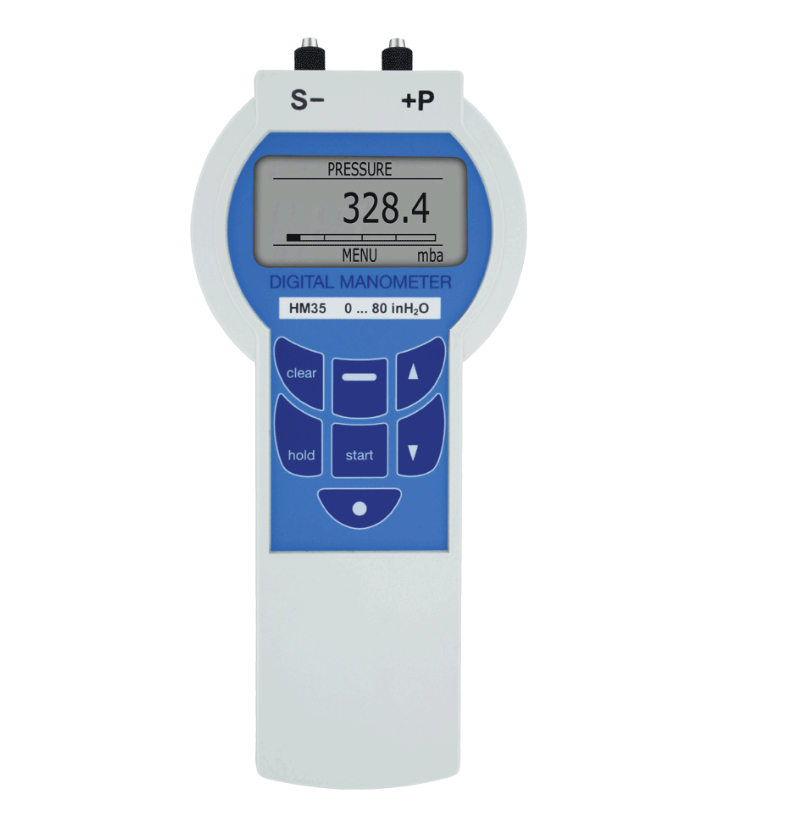

Dwyer HM3531GML310 | Gage Pressure Manometer | 0-145 psi, 0.2% Accuracy
For gage pressure work up to 145 psi, the Dwyer HM3531GML310 offers 0.2% accuracy in an HM35 Series digital manometer. Readings can be logged in the instrument and downloaded to a PC afterwards.
- Data logger holds 10,742 readings at a selectable 1 s-24 h interval or on demand
- PC download over an infrared serial connection
- Large backlit graphic LCD that can plot data patterns
- Process connection: 4/6 mm hose or 1/8" NPT, 18/8 SS wetted
- IP54 (NEMA 3) protection, 300 g
- Ships with a calibration certificate
- Specifications
- Features
- Downloads
| Part Number | HM3531GML310 |
| Brand | Dwyer |
| Range | 0-145 psi |
| Accuracy | 0.2% |
| Weight | 10.5 oz (300 g) |
| Power | 3 x 1.5 V AA or 6-9 VDC external |
| Memory | 10,742 readings; interval 1 s to 24 h or manual |
| Display | Backlit graphical LCD, 128 x 64 points |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Approvals | CE |
| Pressure Type | Gage |
| Wetted Material | 18/8 stainless steel |
| Protection | IP54 (NEMA 3) |
| Connection | Hose 4/6 mm or 1/8" NPT |
- Able to download readings to a PC and store up to 10,742 readings.
- Accuracy of up to 0.05% is suitable for critical applications.
- Determine the gage, differential, or absolute pressure.
