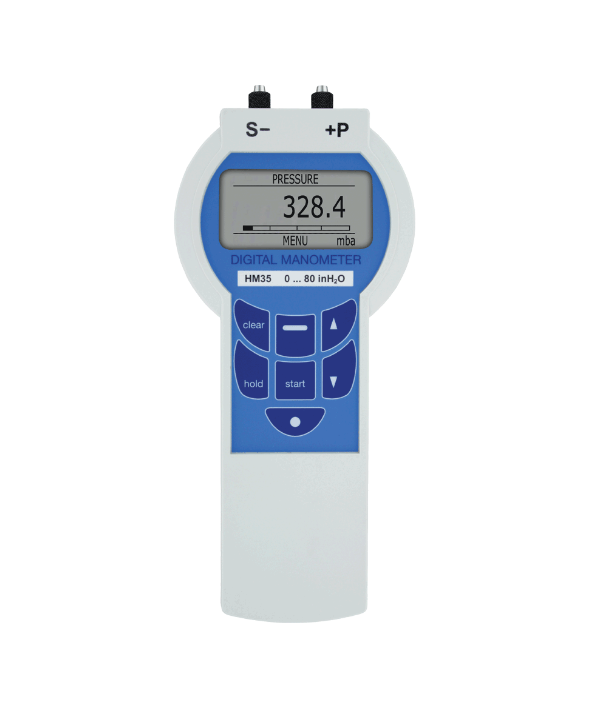

Dwyer HM3531DLM310 | Differential Pressure Manometer | 0-245 psi, 0.2% Accuracy
Dwyer HM3531DLM310 is an HM35 Series digital differential pressure manometer with a 0-245 psi range and 0.2% accuracy. It measures and records pressure readings and passes the stored data to a PC.
- Memory for 10,742 readings, logged every 1 s to 24 h or manually
- IR serial connection for downloading data to a PC
- Backlit 128 x 64 graphical LCD shows peaks, valleys and trends
- 18/8 stainless steel wetted parts; 4/6 mm hose or 1/8" NPT connection
- IP54 (NEMA 3); runs on 3 x AA batteries or 6-9 VDC
- Calibration certificate included
- Specifications
- Features
- Downloads
| Part Number | HM3531DLM310 |
| Brand | Dwyer |
| Range | 0-245 psi |
| Accuracy | 0.2% |
| Weight | 10.5 oz (300 g) |
| Power | 3 x 1.5 V AA or 6-9 VDC external |
| Memory | 10,742 readings; interval 1 s to 24 h or manual |
| Display | Backlit graphical LCD, 128 x 64 points |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Approvals | CE |
| Pressure Type | Differential |
| Wetted Material | 18/8 stainless steel |
| Protection | IP54 (NEMA 3) |
| Connection | Hose 4/6 mm or 1/8" NPT |
- Able to download readings to a PC and store up to 10,742 readings.
- Accuracy of up to 0.05% is suitable for critical applications.
- Determine the gage, differential, or absolute pressure.
