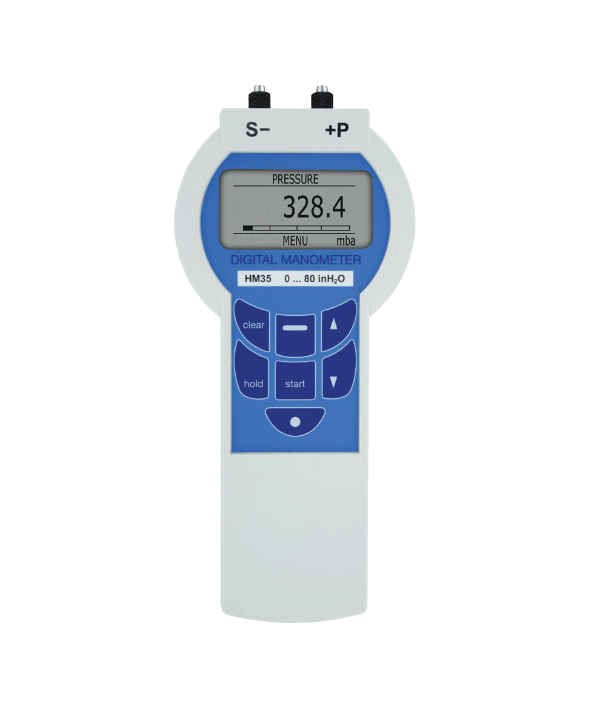

Dwyer HM3531DLF100 | Precision Digital Manometer | 0-120" w.c., 0.05% Accuracy
Ranged 0-120 in w.c. with 0.05% accuracy, the Dwyer HM3531DLF100 precision digital manometer measures and records differential pressure, storing up to 10,742 readings for transfer to a PC. On the HM3531DLF100, a graphical backlit LCD shows peaks, valleys and data trends.
- 0-120 in w.c. differential range, 0.05% accuracy
- Backlit 128 x 64 graphical LCD shows trends, peaks and valleys; 3 x AA batteries or 6-9 VDC external power
- IP54 (NEMA 3) housing, 18/8 stainless steel wetted parts; hose 4/6 mm or 1/8" NPT process connection
- Calibration certificate included; 10,742-reading memory, interval 1 s to 24 h or manual
- Specifications
- Features
- Downloads
| Part Number | HM3531DLF100 |
| Brand | Dwyer |
| Range | 0-120" w.c. |
| Accuracy | 0.05% |
| Weight | 10.5 oz (300 g) |
| Power | 3 x 1.5 V AA batteries; 6 to 9 VDC external |
| Memory | 10,742 readings; 1 s to 24 h intervals or manual |
| Display | Graphical backlit LCD, 128 x 64 points |
| Interface | IR serial connection to PC |
| Process Connection | Hose 4/6 mm or 1/8" NPT |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Pressure Type | Differential |
| Wetted Material | 18/8 stainless steel |
| Protection | IP54 (NEMA 3) |
- Able to download readings to a PC and store up to 10,742 readings.
- Accuracy of up to 0.05% is suitable for critical applications.
- Determine the gage, differential, or absolute pressure.
