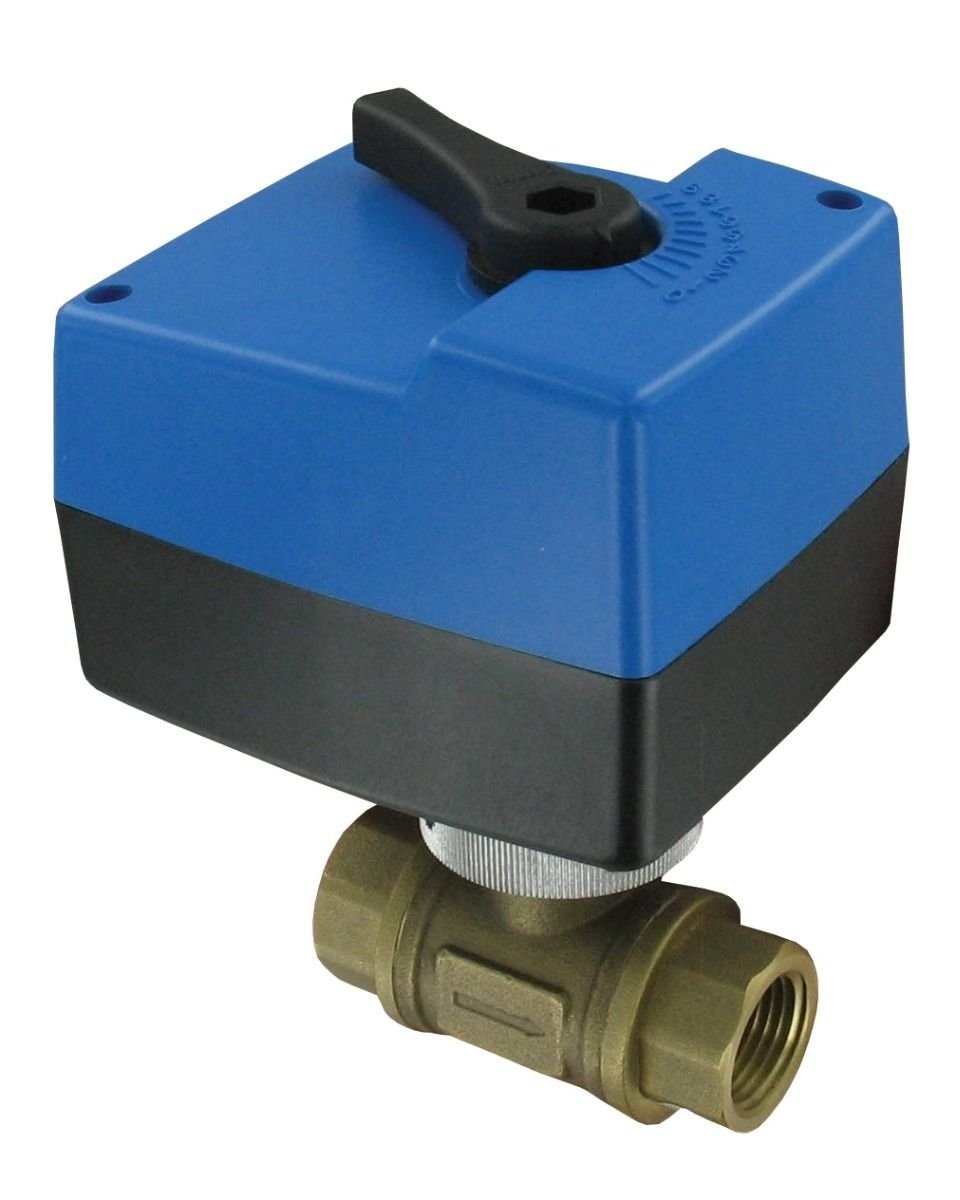

Dwyer Instruments HBAV0711 | 2-Way ball valve | 2" NPT | Floating | 110 VAC
Genuine Dwyer HBAV0711 electric ball valve from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.
Part No. HBAV0711
Product Overview
The Dwyer HBAV0711 is a 2-way, normally closed electric ball valve with 2" female NPT connections and a floating 3-wire actuator powered by 110 VAC. It uses a bidirectional AC motor to open and close the valve according to controller commands and is designed for HVAC, heating, water treatment and production applications.
The floating control configuration allows the controller to drive the valve open or closed while the actuator holds its position between commands. Power consumption is 3 to 5 VA.
The valve is rated for a maximum pressure of 375 psi (25 bar) and an 87 psi (6 bar) close-off pressure. It handles process temperatures from −5 to 50 °C (23 to 122 °F), with an ambient operating range of −30 to 70 °C (−22 to 158 °F). Wetted materials include brass, stainless steel, NBR and PTFE.
The detachable actuator features a manual override, position switches and a visual indicator. The 90° cycle time is approximately 50 seconds, and the actuator is rated NEMA 1 (IP10).
Need a different supply voltage or control mode? See the Dwyer HBAV0724.
Key Benefits
- 2" female NPT connections for HVAC and process pipework
- Floating 3-wire control with 110 VAC supply
- Detachable actuator with manual override
- Position switches and visual indicator
- 375 psi (25 bar) maximum pressure and 87 psi (6 bar) close-off
- High Cv for reduced pressure drop
- 2-way normally closed valve configuration
- Brass, stainless steel, NBR and PTFE wetted materials
Who This Product Is Best For
- HVAC contractors controlling chilled-water and hot-water circuits
- BMS integrators requiring floating-point valve control
- Water treatment and production facilities
- Facility maintenance teams replacing compatible motorised valves
- System integrators working with 110 VAC control infrastructure
How to Install & Use It
- Install the valve in the 2" NPT pipeline with the actuator positioned for accessible wiring and servicing.
- Connect the 110 VAC supply and 3-wire floating control according to the applicable wiring instructions.
- Check the actuator position indicator before operation.
- Use the manual override when manual positioning is required.
- Command the valve open and closed through the controller.
- Verify the valve reaches the required positions and operates correctly within the system pressure and temperature limits.
Frequently Asked Questions
What voltage does the Dwyer HBAV0711 use?
The HBAV0711 uses 110 VAC, 50/60 Hz.
Is the HBAV0711 floating or modulating?
It uses floating control with a 3-wire control input.
Is the valve normally open or normally closed?
The HBAV0711 is a 2-way, normally closed electric ball valve.
What pressure is the HBAV0711 rated for?
The maximum pressure is 375 psi (25 bar), with an 87 psi (6 bar) close-off rating.
Can the actuator be removed?
Yes. The actuator is detachable and includes a manual override, position switches and a visual position indicator.
What is the cycle time of the HBAV0711?
The 90° cycle time is approximately 50 seconds.
What is the difference between the HBAV0711 and HBAV0724?
Both are Dwyer HBAV electric ball valves, but the HBAV0711 uses a 110 VAC floating 3-wire control configuration, while the HBAV0724 uses 24 VAC power with a 4–20 mA modulating input. Select the model according to your controller output and system requirements.
Is delivery available across Saudi Arabia?
Yes. Free Saudi Arabia shipping is available. Call +966 569 289 544 for pricing and lead-time information.
