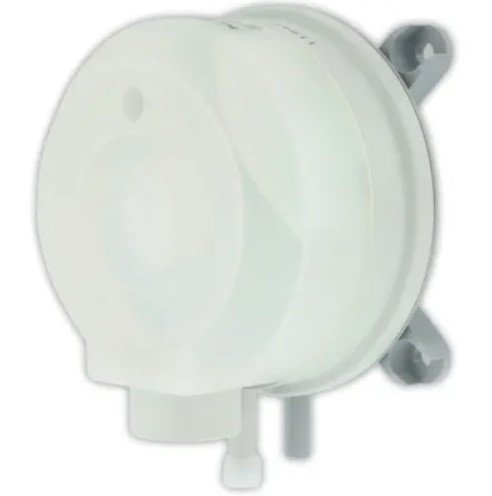

Dwyer EDPS-08-1-N | Differential Pressure Switch | 0.08-1.20 in w.c. | 1/2 in NPT | ETL
The Dwyer EDPS-08-1-N is an ETL-approved adjustable differential pressure switch for 0.08 to 1.20 in w.c., with a 1/2 in NPT connection. It is built from plenum-rated plastics and is set with a dual-scaled knob, no gauge needed. Its compact size and adjustment knob make the EDPS-08-1-N a practical choice for HVAC applications.
- SPDT output rated 1.5 A
- 0.5 in port size
- For pressure, vacuum and differential duty
- Meets UL508 (EDPS series)
- Specifications
- Features
- Downloads
| Part Number | EDPS-08-1-N |
| Brand | Dwyer |
| Series | EDPS |
| Output | SPDT |
| Approvals | ETL |
| Connection | 1/2 in NPT |
| Current Rating | 1.5 A |
| Set Point Range | 0.08-1.20 in w.c. |
- Changes to the adjustment knob Changing pressure quickly and simply with components for application that reduce pressure gage.
- It is a great option for BAS and HVAC applications that need duct management and monitoring due to its low cost.
- Relay contact makes it easy to integrate building systems or DDC.
