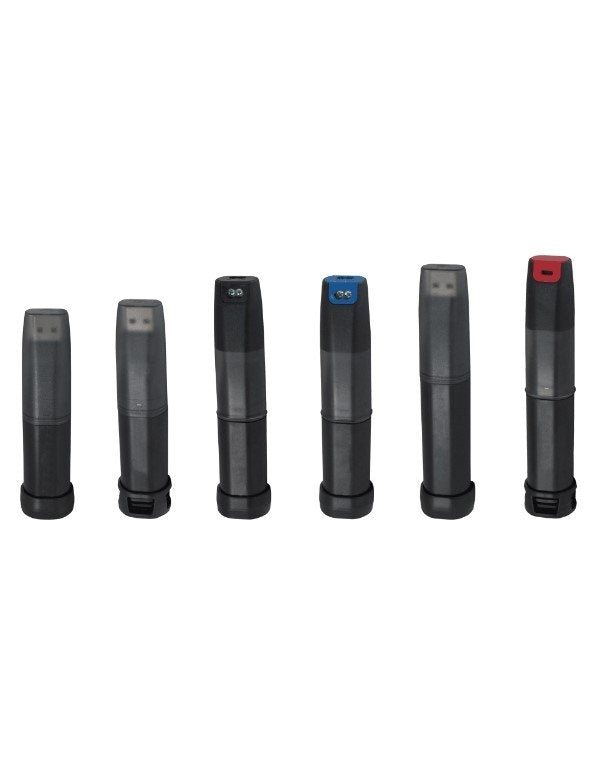

Dwyer Instruments DW-USB-6 | Compact USB data logger | Thermocouple input
By simply connecting the Series DW-USB-6 Compact USB Data Logger module into a PC's USB port, users may download recorded data and monitor temperature, humidity, dew point, voltage, current, and carbon monoxide virtually anywhere. The small housing features integrated LEDs to show when an alarm has been triggered or when the battery is low, and it can withstand dampness up to IP67 when the protective cover is fastened. With the software that can be downloaded for free from our website, users can adjust the temperature unit, high/low alerts, start time, and sampling rate.

Free UAE shipping available
- Specifications
- Features
- Downloads
Alarm | Programmable high/low |
Approvals | CE |
Housing | ABS plastic blend |
Interface | USB Port |
Manufacturer | Dwyer Instruments |
MEMORY SIZE | 16,382 temperature; 16,382 each temperature and RH; 32,764 readings for voltage, current, and thermocouple; and 32,510 for carbon monoxide |
Power | 3.6 V 1/2 AA lithium metal battery, included, user-replaceable |
Sampling Rate | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models) |
Weight | 1.5 oz (43 g) |
- Fulfills IP67 requirements when the protective cap is used.
- The all-in-one device connects to a PC without a cord.
- For visual verification, use LED status indicators.
- An integrated LCD display is optional for local indication.
