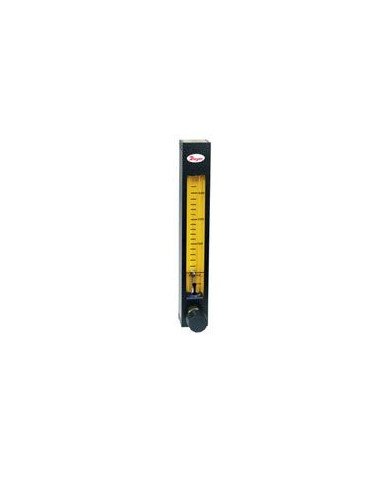

Dwyer DR4144 | High Flow Glass Flowmeter | 1–16 SCFM Air
Dwyer DR4144 reads air flow directly from 1–16 SCFM (20–500 SLPM) on a 127 mm scale. The DR4144 high flow glass flowmeter is built for demanding industrial installations and has a safety blow-out rear panel.
- Scaled for air: 1–16 SCFM (20–500 SLPM)
- Fused ceramic scale with built-in float guides (1–16 SCFM)
- Easier reading via a 1.5x lens on the 1–16 SCFM scale
- Rear blow-out panel and 3/8" female NPT connections (1–16 SCFM air)
- Accuracy ±10% FS, repeatability ±0.25% (1–16 SCFM air)
- Specifications
- Features
- Downloads
| Part Number | DR4144 |
| Brand | Dwyer |
| Accuracy | ±10% FS at 70 °F (21.1 °C) and 14.7 psia |
| Mounting | Vertical |
| Max. Operating Pressure | 200 psig (13.8 bar) |
| Flow Range | 1–16 SCFM (20–500 SLPM) air |
| Scale | Direct reading, 127 mm |
| Max. Operating Temperature | 250 °F (121 °C) |
| Connection | 3/8" female NPT |
| Repeatability | ±0.25% of scale reading |
| Flowtube | Borosilicate glass |
| Float | 316 SS |
| End Fittings | Brass or 316 SS |
| Turn-down Ratio | 10:1 |
- Simplifies fluid flow indicator by offering a straight reading scale for air or water, particularly at greater capacity levels.
- Designed to endure the most demanding industrial applications, guaranteeing durability and dependability in difficult settings.
- Because the ceramic scale is permanently bonded, it is more durable and consistently provides precise readings.
- Has built-in float guides for optimal float performance and accurate measurement.
- makes use of a reflective plastic backdrop and a 1.5x magnification lens to provide more precise readings while minimizing eye strain.
- Has a safety blow-out rear panel to provide extra security and guarantee safety in the event of an emergency or pressure buildup.
