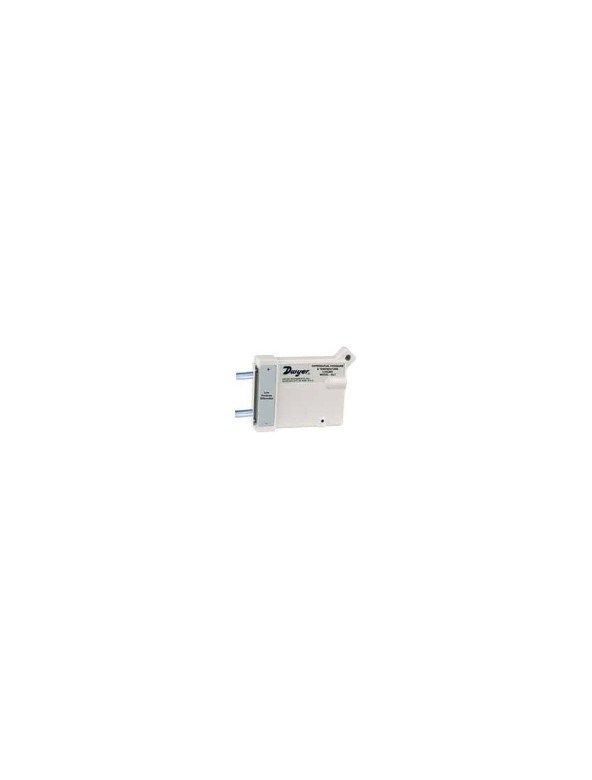

Dwyer DL71 | Differential Pressure Data Logger | ±1" w.c. (2.5 mbar)
Ranged ±1 in w.c. (2.5 mbar), the Dwyer DL71 differential pressure data logger records pressure and ambient temperature for duct air velocity monitoring and HVAC balancing work. Memory on the DL71 holds 21,500 readings, sampled at intervals from 0.04 s to 8 h.
- Accuracy ±0.05" w.c.; resolution ±0.01" w.c.
- User-set sample interval from 0.04 seconds to 8 hours
- Runs independently on a built-in lithium battery
- DL200 Windows software, sold separately, for set-up and download
- Maximum pressure 4 times rated pressure
- Memory for 21,500 readings
- Specifications
- Features
- Downloads
| Part Number | DL71 |
| Brand | Dwyer |
| Range | ±1" w.c. (2.5 mbar) |
| Accuracy | ±0.05" w.c. |
| Weight | 4 oz (110 g) |
| Power | 3.6 V lithium battery, internal |
| Memory | 21,500 readings |
| Resolution | ±0.01" w.c. |
| Sampling Rate | 0.04 s to 8 h |
| Repeatability | ±0.05% FS |
| Drift | ±0.5% FS/yr |
| Channels | 2: differential pressure, internal thermistor |
| Thermistor Range | -40 to 158 °F (-40 to 70 °C) |
| Connection | Two 1/8" I.D. permanent protective tubing |
- Use Model DL200 Windows® software (sold separately) to quickly program the logger or upload data to a computer.
- The series DL7 logger is ideal for monitoring air duct velocity, testing and balancing HVAC systems, or verifying room pressure.
