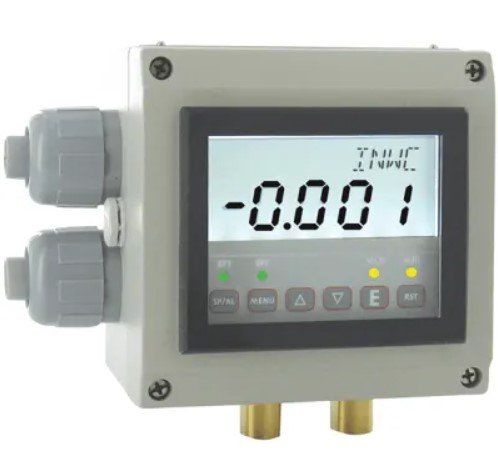

Dwyer DHII-007 | Digihelic II Differential Pressure Controller | 10 in w.c. | NEMA 4 (IP66) | LCD
The Dwyer DHII-007 is a Digihelic II differential pressure controller for a 10 in w.c. range, built into a NEMA 4 (IP66) enclosure suited to rooftop units and areas cleaned with water. Its illuminated LCD shows four digits that can be read from across a room. Removable terminal blocks on the DHII-007 can be wired outside the housing before being fitted, which reduces installation time.
- 10 in w.c. full range
- Dual SPDT relays with 4-20 mA process output
- Modbus for building systems
- Removable terminals shorten installation time
- Specifications
- Features
- Downloads
| Part Number | DHII-007 |
| Brand | Dwyer |
| Series | DHII (Digihelic II) |
| Range | 10 in w.c. |
| Output | 4-20 mA |
| Approvals | CE, UL |
| Net Weight | 2.06 lb |
| Connection | 1/8 NPT |
| Enclosure | NEMA 4 (IP66) |
| Display | 4-digit LCD |
| Relays | 2 x SPDT |
| Communication | Modbus |
| Size | 4.72 in |
- When there is water available, NEMA 4 housing allows for a variety of usage both indoors and outdoors.
- Large backlit LCD display allows for distant local viewing.
- Separate terminal blocks lessen wiring issues cutting down on installation time.
