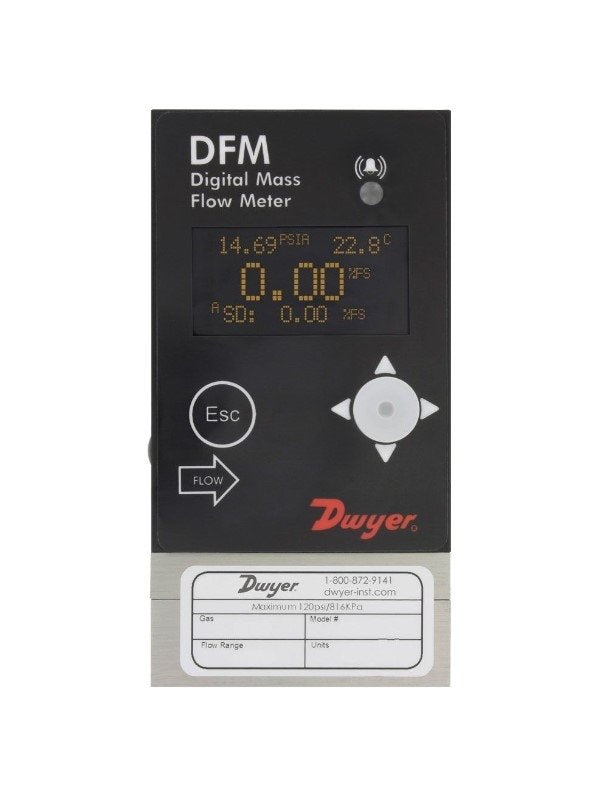

Dwyer DFM-56100-V-DLA2 | Digital Flow Meter | 0-100 l/min, 3/8" Fittings, RS-232/485
Part Number : DFM-56100-V-DLA2
With a 0-100 l/min span and 3/8" compression fittings, the Dwyer DFM-56100-V-DLA2 is a DFM digital flow meter for process gases. Mass and volumetric flow, pressure and temperature are read together via the OLED/joystick interface, which covers up to 30 gases.
- RS-232 interface (RS-485 selectable) plus 0-5 VDC output; rated ±(0.5% of reading + 0.2% of full scale)
- Wetted materials include 316/416 SS; FKM O-rings; operating limits: 120 psig, 14 to 140°F
- Supplied with traceable NIST certification; relay output: programmable solid state
- Response time 10 ms; repeatability ±0.15% FS; 9-26 VDC power input
Free Saudi Arabia shipping available
For pricing, please contact our experts.
