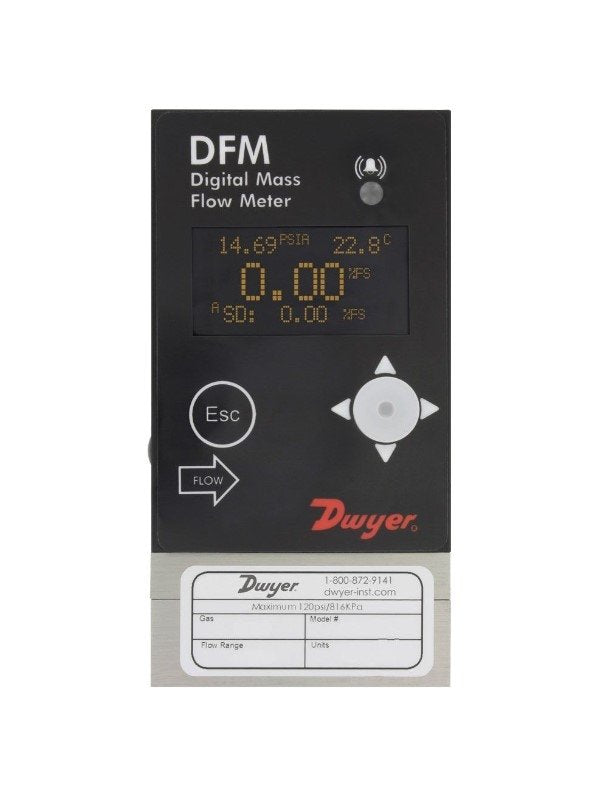

Dwyer DFM-22010-V-ALA2 | Digital Flow Meter | 0-100 ml/min, 1/8" Fittings, RS-232/485
Part Number : DFM-22010-V-ALA2
Dwyer DFM-22010-V-ALA2 is a DFM digital flow meter measuring process gas mass and volumetric flow over 0-100 ml/min, with 1/8" compression fittings. Its OLED/joystick interface covers up to 30 gases and shows mass flow, volumetric flow, pressure and temperature at once.
- 0-5 VDC analogue output; RS-232 digital interface, RS-485 selectable; ±(0.5% rdg + 0.2% FS) accuracy
- 316 SS and 416 SS wetted parts with FKM O-rings; 120 psig max operating pressure
- NIST traceable certification included; solid state relay, programmable
- Repeatability ±0.15% FS, response 10 ms; powered from 9-26 VDC
Free Saudi Arabia shipping available
For pricing, please contact our experts.
