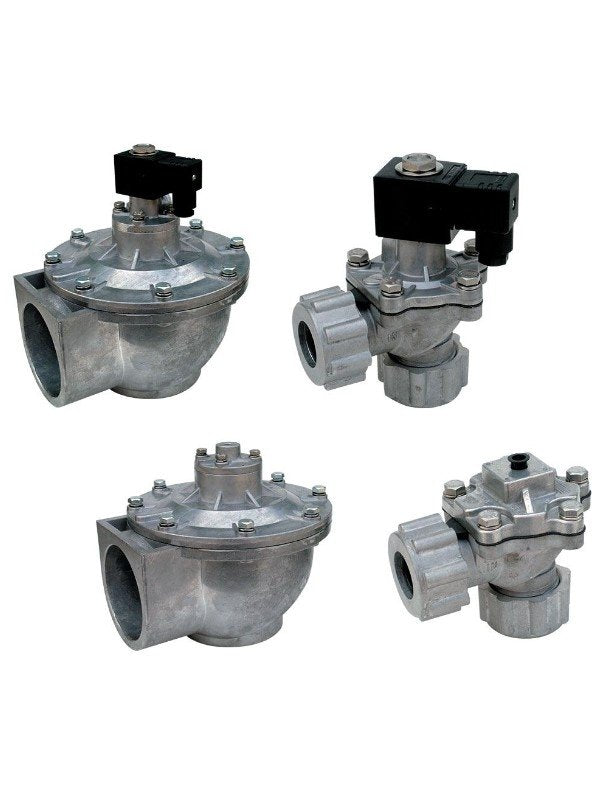

Dwyer DCV25T2D | Dust Collector Diaphragm Valve | 1", NPT, 220 VAC

Name: Dwyer DCV25T2D | Dust Collector Diaphragm Valve | 1", NPT, 220 VAC
Brand: Dwyer
SKU: DCV25T2D
Availability: OutOfStock

Part Number : DCV25T2D

Built for controlling the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards, the Dwyer DCV25T2D diaphragm valve comes in 1" size with an integrated coil and NPT threaded ports, powered at 220 VAC.

1" valve, NPT threaded connection (DCV25T2D)
Integrated coil, 220 VAC DIN electrical connection (DCV25T2D)
NBR diaphragm and seals, polyamide disc, aluminium body (DCV25T2D)
DCV25T2D works between 0.3 and 8.6 bar (4.4-124.7 psi)
Media -20 to 85 °C, ambient -20 to 50 °C, NEMA 4X (IP65), 12 W - DCV25T2D

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Part Number	DCV25T2D
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	1"
Process Connection	NPT
Solenoid	Integrated coil
Supply Voltage	220 VAC
Electrical Connection	DIN
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 50 °C
Enclosure Rating	NEMA 4X (IP65)
Power Consumption	12 W; inrush 17 VA, holding 14.5 VA

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.

Dwyer DCV25T2D | Dust Collector Diaphragm Valve | 1", NPT, 220 VAC

DOWNLOAD CATALOG
