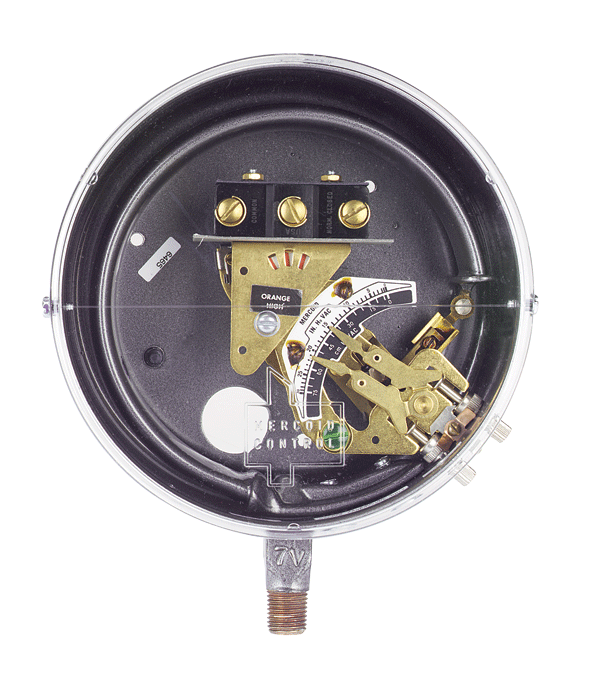

Dwyer DA-31-153-1 | Bourdon Tube Pressure Switch | 1/8-15 psig | Brass | 1 psig Min. Deadband
Dwyer DA-31-153-1 is a Mercoid DA Series Bourdon tube pressure switch with a brass tube and a 1/8 to 15 psig range. Minimum deadband is 1 psig, and the DA design gives separate high and low operating point adjustments so the deadband can be changed across the range. The Mercoid DA/DS family is noted for its sensitivity and repeatability.
- SPDT contact on screw terminals
- 1/4 NPT male process connection
- CSA and UL approvals
- Net weight 4 lb
- Specifications
- Features
- Downloads
| Part Number | DA-31-153-1 |
| Brand | Dwyer |
| Series | DA/DS (Mercoid) |
| Range | 1/8-15 psig |
| Process Connection | 1/4 NPT male |
| Approvals | CSA, UL |
| Contact | SPDT |
| Electrical Connection | Screw terminals |
| Net Weight | 4 lb |
| Min. Deadband | 1 psig |
| Bourdon Tube | Brass |
- A visible, calibrated dial allows for a quick and simple examination without opening the device, which puts operators in danger.
- With the exception of hermetically sealed snap switch versions, the on/off signal clearly indicates to the operator the condition of any switched equipment that might be placed elsewhere.
- Control applications benefit from adjustable or fixed deadband because they minimize equipment wear and tear by eliminating needless recycling.
- Setup time is decreased by adjusting the external switch setpoint.
- Application designers can specify standard equipment with pressure ranges from complete vacuum to 8000 psig, which makes installation and training easier and lowers servicing costs.
- CSA approved, UL listed, and FM approved for numerous models to support strict process applications and regulations.
- Enclosures that are multipurpose, weatherproof, or explosion-proof, suitable for a range of indoor and outdoor conditions, and uses.
