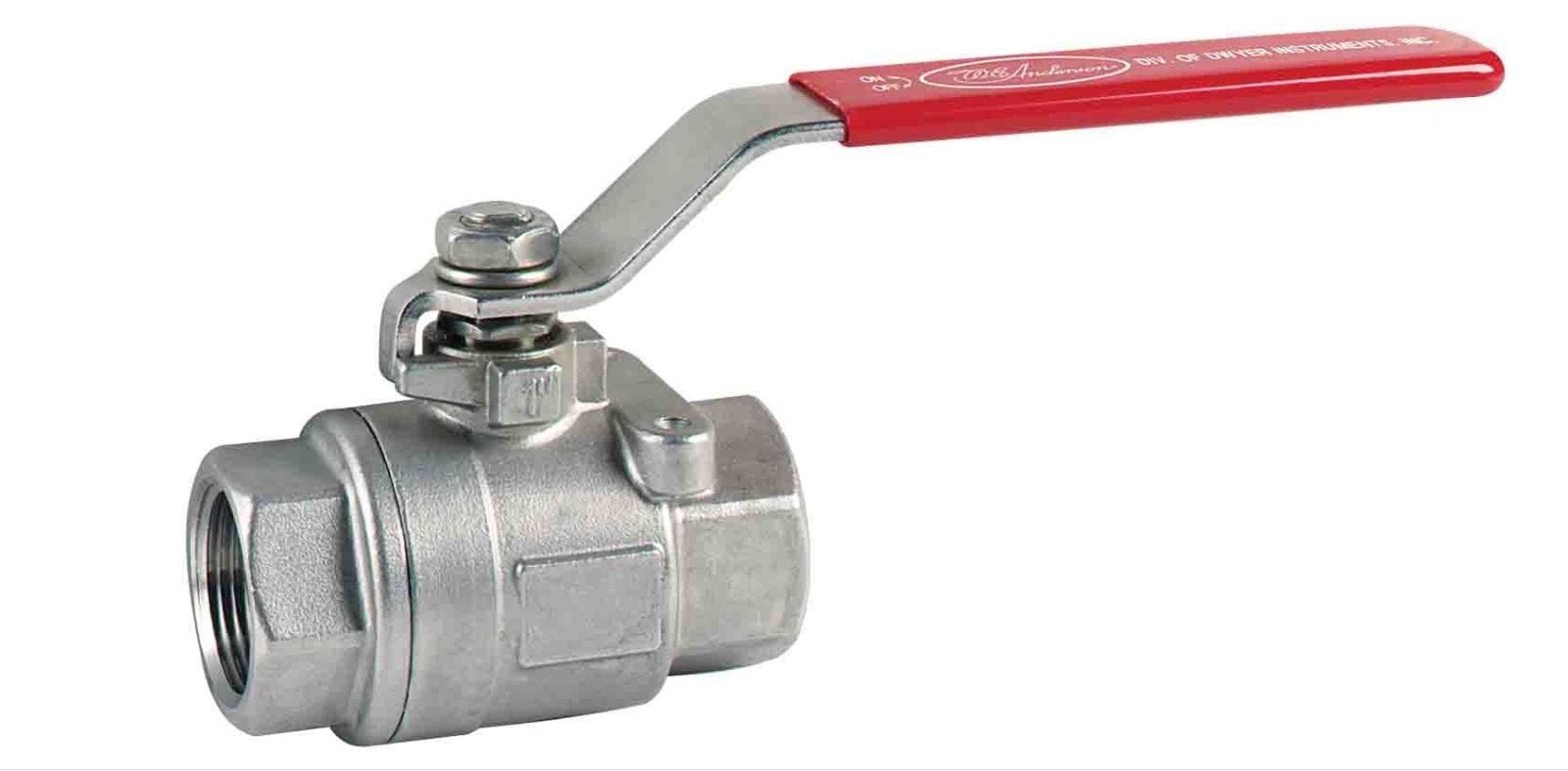

Dwyer Instruments BV2M105 | 1-1/4" two-piece stainless steel ball valve
The Dwyer BV2M105 is a 1-1/4" two-piece stainless steel ball valve designed for chemical, petrochemical, pulp and paper, and general industrial applications. Its full-port design, CF8M stainless steel construction and RTFE/PTFE sealing provide bubble-tight shutoff up to 1000 psi WOG. Genuine Dwyer stock at General Tech Services LLC, UAE. Free UAE-wide shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. BV2M105
The Dwyer BV2M105 Two-Piece Stainless Steel Ball Valve provides a durable shutoff solution for process and utility piping. This 1-1/4" valve features a two-piece construction with an investment-cast CF8M stainless steel body and end caps, together with a 316 stainless steel stem.
15% glass-reinforced PTFE (RTFE) is used for the seats and sealing components, providing broad media compatibility and bubble-tight shutdown. The valve is rated up to 1000 psig (69 bar) WOG, with a 150 psi (10.3 bar) steam working pressure rating.
The full-port design helps minimise pressure loss and provides high flow capacity, while the internally loaded, blowout-proof stem provides additional protection under overpressure conditions. Integral actuator mounting pads also allow the valve to be converted to automatic operation later without replacing the valve body.
Key Benefits
- 1-1/4" two-piece stainless steel ball valve for process and utility piping
- CF8M stainless steel body, ball and end caps for durable service
- 316 stainless steel stem for corrosion-resistant construction
- RTFE/PTFE seats and seals for broad media compatibility
- Bubble-tight shutoff up to 1000 psi (69 bar) WOG
- Full-port design helps minimise pressure loss and maximise Cv
- Internally loaded, blowout-proof stem for added overpressure protection
- Integral actuator mounting pads for future automation
- Suitable for chemical, petrochemical, pulp and paper, and general industrial applications
- Genuine Dwyer stock with free UAE-wide shipping
Who This Product Is Best For
- Chemical and petrochemical process lines requiring stainless steel construction
- Pulp and paper applications requiring durable process isolation
- General industrial shutoff applications where high-pressure sealing is required
- Process and utility piping requiring a 1-1/4" female NPT valve
- Installations where future actuator automation may be required
How to Specify & Commission It
- Confirm the BV2M105's 1-1/4" female NPT connection matches the pipe size and thread requirements.
- Install the valve correctly in the piping system and ensure the full-port opening is aligned with the intended flow path.
- Operate the valve through its 90° travel to achieve fully open or fully closed operation.
- Check all connections for leakage and verify the valve operates correctly before placing the system into service.
- If automation is required later, use the integral actuator mounting pads with a compatible actuator.
Frequently Asked Questions
What is the size of the Dwyer BV2M105?
The BV2M105 is a 1-1/4" two-piece stainless steel ball valve with female NPT end connections.
What is the maximum pressure rating?
The valve is rated to 1000 psi (69 bar) WOG, with a 150 psi (10.3 bar) steam working pressure rating.
What materials are used in the BV2M105?
The body, ball and end caps are CF8M stainless steel. The stem is 316 stainless steel, while the seats and sealing components use RTFE/PTFE.
Is the BV2M105 a full-port valve?
Yes. Its full-port design helps minimise pressure loss and provides high flow capacity.
Does the valve have a blowout-proof stem?
Yes. The BV2M105 uses an internally loaded, blowout-proof stem design for added protection under overpressure conditions.
Can the BV2M105 be automated later?
Yes. Integral actuator mounting pads are included, allowing a compatible actuator to be fitted for future automatic operation.
What applications is the BV2M105 suitable for?
It is suitable for chemical, petrochemical, pulp and paper, general industrial, process and utility shutoff applications.
Is genuine Dwyer stock available in the UAE?
Yes. Genuine Dwyer stock is available from General Tech Services LLC with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
