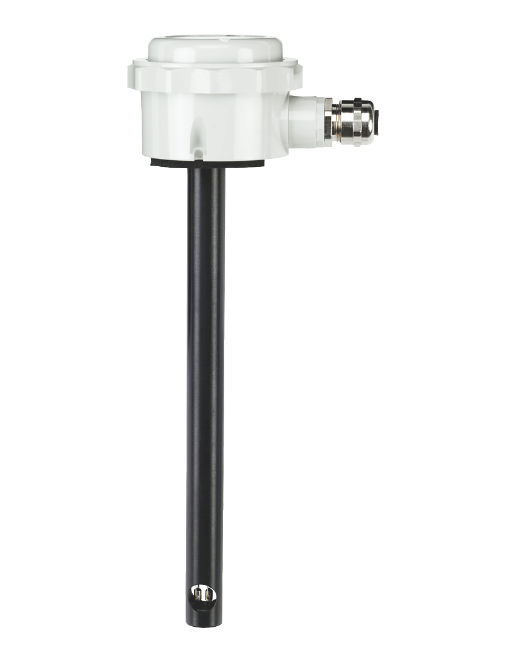

Dwyer Instruments AVUB-1-V | Air velocity transmitter | 0-785 fpm (0-4 m/s) with 0-10 VDC output | 8% accuracy
Genuine Dwyer AVUB-1-V air velocity transmitter from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.
Part No. AVUB-1-V
Product Overview
The Dwyer AVUB-1-V is a duct-mount air velocity transmitter designed to provide simple and reliable airflow feedback for HVAC control, energy management and building automation applications. It measures air velocity from 0–785 FPM (0–4 m/s) and provides a linear 0–10 VDC output for direct connection to compatible controllers.
The Series AVUB uses thermal sensing technology to measure heat loss from the sensing element and calculate air velocity using the local air temperature at the probe. The sensing elements are metal-clad for long service life and easy cleaning, while the design is resistant to drift across the measurement range.
The transmitter has an IP67 enclosure rating, except at the sensing point, making it suitable for demanding plant-room and HVAC environments. The 240 × 19 mm probe can be mounted in any orientation provided it is correctly aligned with the airflow.
Electrical connections are made through screw terminals, with a cable gland suitable for 4–8 mm cable. A screened cable can be used where electrical noise is a concern.
For applications requiring a different range or output configuration, compare the Dwyer AVU-2-A.
Key Benefits
- 0–785 FPM (0–4 m/s) air velocity measurement range
- Linear 0–10 VDC output for controller connection
- ±8% of full scale accuracy
- Drift-resistant thermal sensing technology
- Metal-clad sensing elements for durability and easy cleaning
- IP67 enclosure rating, except at the sensing point
- 240 × 19 mm duct probe
- Probe can be mounted in any orientation when aligned with airflow
- 24 VAC or 24 VDC operation
Who This Product Is Best For
- HVAC contractors installing VAV and zone-control systems
- Building automation and energy-management projects
- Supply and exhaust fan-tracking applications
- Plant-room airflow monitoring
- Projects requiring straightforward 0–10 VDC airflow feedback
- Cost-conscious applications where reliable airflow measurement is required
How to Install & Use It
- Install the probe in the duct with the sensing element aligned with the airflow direction.
- Connect the required 24 VDC or 24 VAC power supply.
- Connect the 0–10 VDC output to the compatible controller or BMS input.
- Use screened cable where electrical noise may affect the signal.
- Power the transmitter and allow the reading to settle.
- Verify the measured airflow against the expected operating condition.
Frequently Asked Questions
What air velocity range does the Dwyer AVUB-1-V measure?
The AVUB-1-V measures from 0–785 FPM (0–4 m/s).
What output signal does the AVUB-1-V provide?
It provides a linear 0–10 VDC output for connection to a compatible controller or building automation system.
How accurate is the Dwyer AVUB-1-V?
The transmitter is rated at ±8% of full scale accuracy.
How does the AVUB-1-V measure air velocity?
It uses thermal sensing technology to measure heat loss from the sensing element and calculate air velocity using the local air temperature at the probe.
What power supply does it require?
The AVUB-1-V operates from 24 VDC or 24 VAC, with a supply tolerance of +10% / −15%.
Can the probe be installed in different orientations?
Yes. The probe can be mounted in any orientation as long as the sensing element is correctly aligned with the airflow.
What is the difference between the AVUB-1-V and AVU-2-A?
The AVUB-1-V measures 0–785 FPM (0–4 m/s) and provides a 0–10 VDC output. The appropriate model depends on the required measurement range, output signal and application requirements.
Is delivery available across Saudi Arabia?
Yes. Free Saudi Arabia shipping is available. Contact General Tech Services LLC to confirm pricing, stock and lead time.
