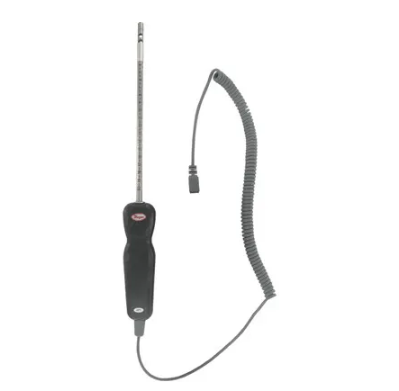

Dwyer Instruments AP1-18 Probe | Thermo Anemometer Air Velocity & Temperature Probe w/Coiled Cable | 18 IN
Genuine Dwyer Instruments stock at General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping. Request a quote in under a minute - call +966 569 289 544.
Part No. AP1-18 | 18-Inch Coiled Cable
Product Overview
The Dwyer AP1-18 is a compact thermo-anemometer air velocity and temperature probe with an 18-inch coiled cable and 8-inch (203 mm) insertion depth. It is designed for use with compatible Dwyer thermo-anemometers and provides a practical solution for airflow measurements where the probe and meter remain relatively close together.
The probe measures air velocity from 45 to 6000 FPM (0.23-30 m/s) with ±3% of full-scale accuracy. It also measures air temperature from -40 to 100°C (-40 to 212°F) with ±0.5°F accuracy. A response time of approximately 1 second helps technicians move efficiently between measurement points during HVAC testing and balancing work.
The 18-inch coiled cable is suited to measurements around AHU access panels, fan coil units and compact duct test locations where a longer lead may be unnecessary. The 8-inch insertion depth provides access to suitable ductwork measurement points, while the 362 g probe remains practical for repeated hand-held measurements.
The AP1-18 is the shortest-cable option in the AP1 range described in the supplied specifications. For applications requiring additional reach, the AP1-24 uses a 24-inch coiled cable, while the AP1-36 provides a 36-inch cable.
With its combination of air velocity and temperature measurement, compact cable length and approximately 1-second response, the AP1-18 is suited to routine HVAC testing, duct traverses, air balancing and commissioning work. The probe is CE approved.
Key Benefits
- 18-inch coiled cable provides a compact setup for close-range measurements.
- 45-6000 FPM air velocity range supports a broad range of HVAC airflow applications.
- ±3% FS velocity accuracy across the specified 4-32°C (40-90°F) conditions.
- -40 to 100°C temperature range with ±0.5°F accuracy.
- Approximately 1-second response time supports efficient point-by-point measurements.
- 8-inch (203 mm) insertion depth for suitable ductwork applications.
- 362 g lightweight probe for practical hand-held field use.
- CE approved for applicable conformity requirements.
Who This Product Is Best For
- HVAC technicians measuring airflow at AHU panels and fan coil units.
- Air balancing engineers who prefer a compact and manageable test setup.
- Service teams checking airflow at close-range duct test ports.
- Owners of compatible Dwyer thermo-anemometers replacing a probe.
- Contractors and maintenance teams keeping a spare probe available for field work.
How to Use / How It Works
- Connect the AP1-18 to your compatible Dwyer thermo-anemometer.
- Use the probe markings to set the required insertion depth.
- Insert the probe through the appropriate test port with the sensor positioned correctly in the airflow.
- Hold the probe steady for approximately 1 second and record the air velocity and temperature readings.
- Repeat the measurement at the required locations for balancing, commissioning or airflow verification.
Frequently Asked Questions
What cable length does the Dwyer AP1-18 have?
The AP1-18 has an 18-inch coiled cable, providing a compact setup for measurements close to the meter.
What air velocity range does the AP1-18 measure?
It measures 45-6000 FPM (0.23-30 m/s) with ±3% full-scale accuracy under the specified conditions.
Does the AP1-18 measure temperature?
Yes. It measures air temperature from -40 to 100°C (-40 to 212°F) with ±0.5°F accuracy.
What is the insertion depth of the AP1-18?
The probe has an 8-inch (203 mm) insertion depth for suitable duct and test-port applications.
How quickly does the AP1-18 respond?
The specified response time is approximately 1 second, allowing technicians to take measurements efficiently during duct traverses and balancing work.
Should I choose the AP1-18, AP1-24 or AP1-36?
The AP1-18 provides an 18-inch cable for compact, close-range work. The AP1-24 provides a 24-inch cable, while the AP1-36 provides a 36-inch cable when additional reach is needed.
Will the AP1-18 fit my Dwyer thermo-anemometer?
The AP1-18 is intended for use with compatible Dwyer thermo-anemometers. Send your meter model to +966 569 289 544 and General Tech Services can confirm compatibility.
