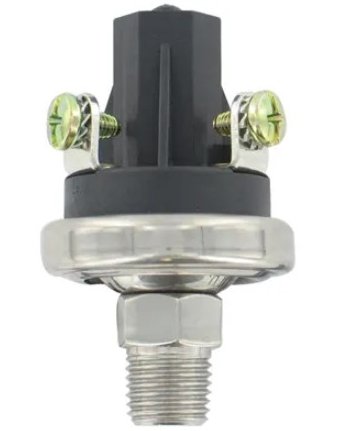

Dwyer A6-753221 | Pressure Switch | 51-90 psi | 1/4 in NPT | IP65
Dwyer A6-753221 is an A6 Series pressure switch for the 51 to 90 psi (3.52 to 6.21 bar) range. Designed for extended-duty applications, it uses a polyimide film diaphragm that works with air, motor oils, transmission oils, jet fuels and similar hydrocarbons. The A6-753221 is compact, holds its set point with good integrity and can be adjusted in the field.
- Range 51-90 psi (3.52-6.21 bar)
- 0.25 in (1/4 in) NPT port, any orientation
- IP65 protection rating
- Handles -40 to 248 °F
- Unit weight 0.13 lb
- Specifications
- Features
- Downloads
| Part Number | A6-753221 |
| Brand | Dwyer |
| Series | A6 |
| Range | 51-90 psi (3.52-6.21 bar) |
| Process Connection | 1/4 in NPT |
| Media | Air, motor oil, transmission oil, jet fuel, similar hydrocarbons |
| IP Rating | IP65 |
| Temperature Range | -40 to 248 °F |
| Weight | 0.13 lb |
- High switch cycle means long life for extended duty applications.
- Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications.
