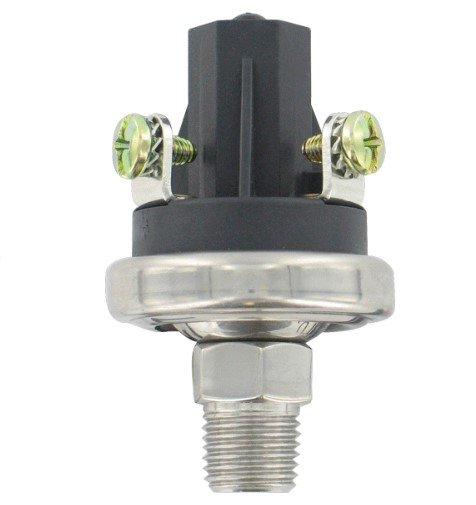

Dwyer A6-553221 | Pressure Switch | 14-24 psi | SPST-NO/NC | IP65
Covering 14 to 24 psi, the Dwyer A6-553221 is an extended-duty pressure switch with an SPST-NO/NC output. The polyimide film diaphragm is compatible with air, motor oil, transmission oil and jet fuel, while the 1/4 in NPT port keeps installation straightforward. Compact in size, the A6-553221 offers good set-point integrity and simple field adjustment.
- 14 to 24 psi switching range
- Screw terminals for the SPST-NO/NC contact
- IP65 housing
- Suitable from -40 to 248 °F
- Light at 0.13 lb
- Specifications
- Features
- Downloads
| Part Number | A6-553221 |
| Brand | Dwyer |
| Series | A6 |
| Range | 14-24 psi |
| Output | SPST-NO/NC |
| Process Connection | 1/4 in NPT |
| Media | Air, motor oil, transmission oil, jet fuel, hydrocarbons |
| Termination | Screw |
| IP Rating | IP65 |
| Temperature Range | -40 to 248 °F |
| Weight | 0.13 lb |
- Long life for extended duty applications is indicated by a high switch cycle.
- Reliable switching for equipment and OEM applications is made simple with a feature that allows mounting in any position.
