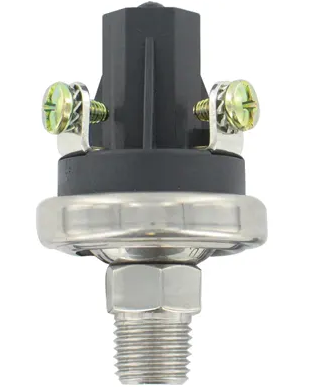

Dwyer A6-453221 | Pressure Switch | 8-13 psi | SPST-NO/NC | IP65
For set points between 8 and 13 psi, the Dwyer A6-453221 offers an SPST-NO/NC output with screw termination in a compact IP65 package. It handles air, motor oils, transmission oils and jet fuels, and its 1/4 in NPT connection can face any direction. The A6-453221 is compact, holds its set point with good integrity and can be adjusted in the field.
- SPST-NO/NC contact, screw termination
- Polyimide film diaphragm for varied fluids
- Ingress protection IP65
- Operating temperature -40 to 248 °F
- 0.13 lb unit weight
- Specifications
- Features
- Downloads
| Part Number | A6-453221 |
| Brand | Dwyer |
| Series | A6 |
| Range | 8-13 psi |
| Output | SPST-NO/NC |
| Process Connection | 1/4 in NPT |
| Media | Air, motor oil, transmission oil, jet fuel, hydrocarbons |
| Termination | Screw |
| IP Rating | IP65 |
| Temperature Range | -40 to 248 °F |
| Weight | 0.13 lb |
- High switch cycle means long life for extended duty applications.
- Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications.
