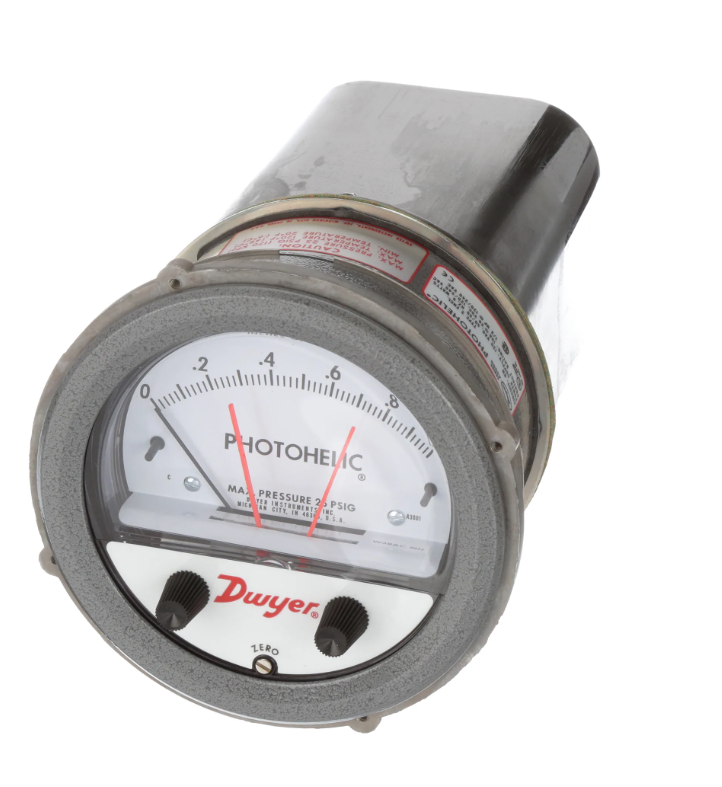

Dwyer A3001 | Photohelic Pressure Switch/Gauge | 0-1 in w.c., 2 DPDT, 1/8 in NPT F
The Dwyer A3001 is a Series A3000 Photohelic switch/gauge reading 0-1 in w.c. (0-0.04 psi), combining a Magnehelic-design gauge with two phototransistor-actuated DPDT relays for low and high limit control. It measures and controls positive, negative or differential pressure of air and compatible gases.
- 0-1 in w.c. (0-0.04 psi) range on the A3001
- Set point knobs on the gauge face; deadband under 1% of full scale per set point (A3001)
- Set points can be interlocked for variable deadband, for fans and dampers (A3001)
- Gauge reading continues during power loss (A3001)
- Panel mount; dual side 1/8 in NPT female ports; 120 VAC; IP20 (A3001)
- Specifications
- Features
- Downloads
| Part Number | A3001 |
| Brand | Dwyer |
| Series | A3000 |
| Range | 0-1 in w.c. (0-0.04 psi) |
| Process Connection | 1/8 in NPT female, dual side ports |
| Mounting | Panel mount |
| Outputs | 2 DPDT relays, dry contact |
| Supply Voltage | 120 VAC |
| Termination | Terminal block |
| Protection | IP20 |
| Standard Pressure Rating | 25 psig |
- Bezel and front cover (with set point knobs and zero adjustment screw) were removed to expose the Photohelic® switch/gage set point mechanism. The cover is clear polycarbonate plastic.
- The gage pointer and light shutter are mounted on a helix and balancing counterweight. The shutter passes through a slot in the optical limit switch to expose phototransistors to the integral infrared light source or mask them depending on applied pressure.
- Light shield effectively protects phototransistors from strong outside light sources yet allows free pointer movement. It also gives the interior a clean "finished" look.
- Optical limit switches are used for reliability and long service life. Attached directly to set pointers, they are individually aligned to assure precise switching accuracy.
- The semi-Flexible drive shaft connects to set point knobs.
- Zero adjustment screw connects to screw in cover to adjust zero pressure reading.
- A plastic enclosure protects electronic components and electrical connections.
- Polycarbonate connection or terminal board is self-extinguishing.
- Glass epoxy printed circuit boards for durability and permanence.
- Load relays are DPDT with a latching feature for maximum application versatility.
- Electronics are designed to operate on 50/60 Hz, 120-volt current with 10% over or under voltage. Special units for other voltages are available.
- Switch set pointers show switch settings at all times.
- Spring-loaded friction clutch prevents operator damage to the set point mechanism.
- A 3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time, and money.
- Patented design and 1% full-scale dead band provide a quick response to pressure changes means no delay in switching and chatter-free operation.
- A wide range of models that can meet pressure measurement specifications from low to very high.
