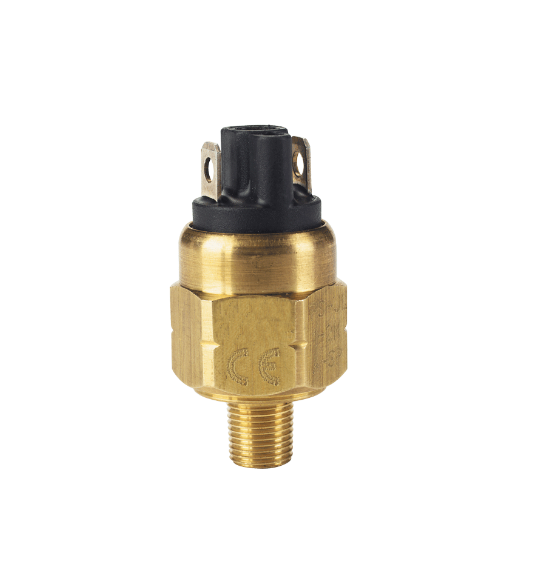

Dwyer A2-6801 | Subminiature Pressure Switch | 20-200 psi (1.4-6.89 bar), Brass, NO
The Dwyer A2-6801 is a subminiature pressure switch in brass with a 20-200 psi (1.4-6.89 bar) range, a normally open contact and spade terminals. It works with liquids and gases, carries an IP69 enclosure rating and operates from -40 to 230 °F (-40 to 110 °C).
- 20-200 psi (1.4-6.89 bar) range; 350 psi (24 bar) pressure limit
- SPST switch rated 100 VA, 42 VDC; normally open
- Wetted parts: brass and polyimide film
- Male NPT process connection (1/8 in or 1/4 in)
- Deadband under 10%; repeatability ±3% of maximum set point at 70 °F (21 °C)
- Specifications
- Features
- Downloads
| Part Number | A2-6801 |
| Brand | Dwyer |
| Range | 20-200 psi (1.4-6.89 bar) |
| Process Connection | 1/8 NPT male, 1/4 NPT male |
| Approvals | CE |
| Contact | NO, SPST |
| Electrical Connection | Spade terminals |
| Net Weight | 0.14 lb |
| Electrical Rating | 100 VA, 42 VDC |
| Temperature Range | -40 to 230 °F (-40 to 110 °C) |
| Housing Material | Brass |
| Enclosure Rating | IP69 |
| Pressure Limit | 350 psi (24 bar) |
| Repeatability | ±3% of max set point |
- Range: 1.03 to 6.9 bar (1.03 to 100 psi).
- SPST-NO link.
- Terminals for spades.
- In the field, a switch with spade terminals for 100VA and 42VDC can be readily changed.
- Gases and liquids that mix well.
- Wet substance made of brass and polyamide film.
- Limit temperature: -40 to 230°F (-40 to 110°C).
