Dwyer 657C-1 | Humidity/Temperature Transmitter | 2 x 4-20 mA, ±2% RH, 9.1 in Probe
The Dwyer 657C-1 is a relative humidity and temperature transmitter with two 4-20 mA channels and a 5/16" x 9-1/10" (0.8 x 23.1 cm) probe. Separate 4-20 mA signals for RH and temperature are produced; humidity accuracy is ±2% (10 to 90% RH) and temperature ±1°F (0.5°C).
- Any mounting position, 4 screw terminals
- Probe 5/16" x 9-1/10" (0.8 x 23.1 cm)
- Weight 10 oz (284 g)
- Measures 0-100% RH and 0-100°C (32-212°F)
- 10 to 35 VDC supply; RH channel loop powered
- Specifications
- Features
- Downloads
| Part Number | 657C-1 |
| Brand | Dwyer |
| Power | 10-35 VDC |
| Mounting | Any position |
| Weight | 10 oz (284 g) |
| Output | 2 channels, 4-20 mA each (loop powered on RH) |
| Operating Temperature | 32 to 140 °F (0 to 60 °C) |
| Accuracy | Relative humidity: +/-2% (10 to 90% RH), +/-3% (0 to 10% and 90 to 100% RH); Temperature +/-1 °F (0.5 °C) |
| Compensated Range | 32 to 140 °F (0 to 60 °C) |
| Range | Relative humidity: 0 to 100%; Temperature: 32 to 212 °F (0 to 100 °C) |
| Probe | 5/16" x 9-1/10" (0.8 x 23.1 cm) |
| Max. Pressure | 1 psi (0.7 bar) |
| Electrical Connection | 4 screw type terminals |
- Thin film RTD temperature sensors and polymer film humidity sensors provide incredibly stable and dependable readings.

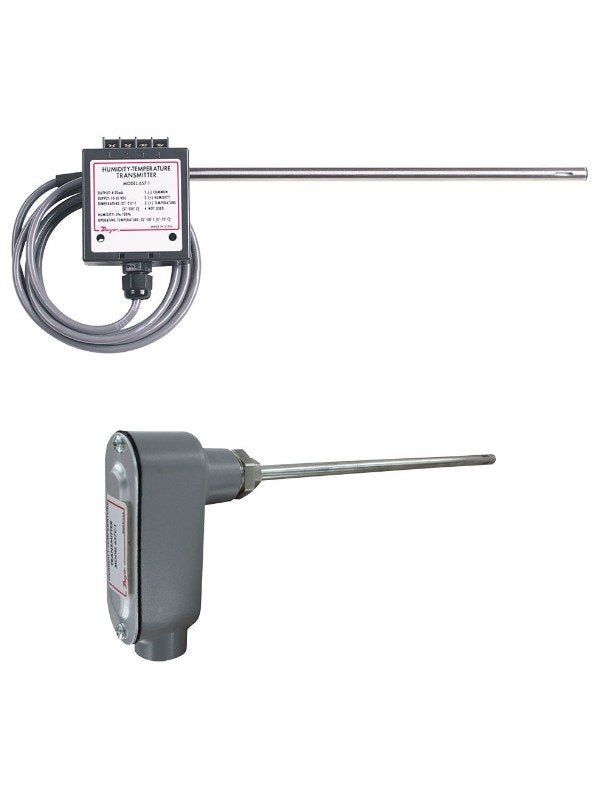

- Flexibility in installation is provided via remote mount housing (657-1).
- Industrial applications benefit greatly from the robust die-cast aluminum housing (657C-1).
