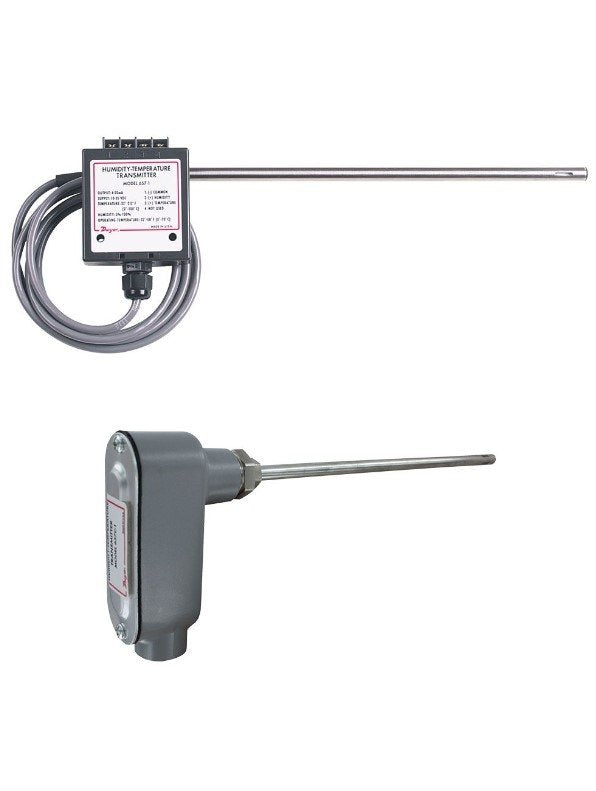

Dwyer 657-1 | Humidity/Temperature Transmitter | 2 x 4-20 mA, ±2% RH, 10 in SS Probe
The Dwyer 657-1 is a relative humidity and temperature transmitter with two 4-20 mA channels and a 5/16" x 10" (0.8 x 25.4 cm) SS probe. Independent outputs for humidity and temperature are provided, with ±2% RH accuracy from 10 to 90% RH and ±1°F (0.5°C) on temperature.
- Compensated 32 to 140°F (0 to 60°C)
- 4 screw type terminals; mounts in any position
- Probe 5/16" x 10" (0.8 x 25.4 cm) SS
- Weight 5.5 oz (156 g)
- Ranges 0 to 100% RH and 32 to 212°F (0 to 100°C)
- Specifications
- Features
- Downloads
| Part Number | 657-1 |
| Brand | Dwyer |
| Power | 10-35 VDC |
| Mounting | Any position |
| Weight | 5.5 oz (156 g) |
| Output | 2 channels, 4-20 mA each (loop powered on RH) |
| Operating Temperature | 32 to 140 °F (0 to 60 °C) |
| Accuracy | Relative humidity: +/-2% (10 to 90% RH), +/-3% (0 to 10% and 90 to 100% RH); Temperature +/-1 °F (0.5 °C) |
| Compensated Range | 32 to 140 °F (0 to 60 °C) |
| Range | Relative humidity: 0 to 100%; Temperature: 32 to 212 °F (0 to 100 °C) |
| Probe | 5/16" x 10" (0.8 x 25.4 cm) SS |
| Max. Pressure | 1 psi (0.7 bar) |
| Electrical Connection | 4 screw type terminals |
- Thin film RTD temperature sensors and polymer film humidity sensors provide incredibly stable and dependable readings.
- Flexibility in installation is provided via remote mount housing (657-1).
- Industrial applications benefit greatly from the robust die-cast aluminum housing (657C-1).
