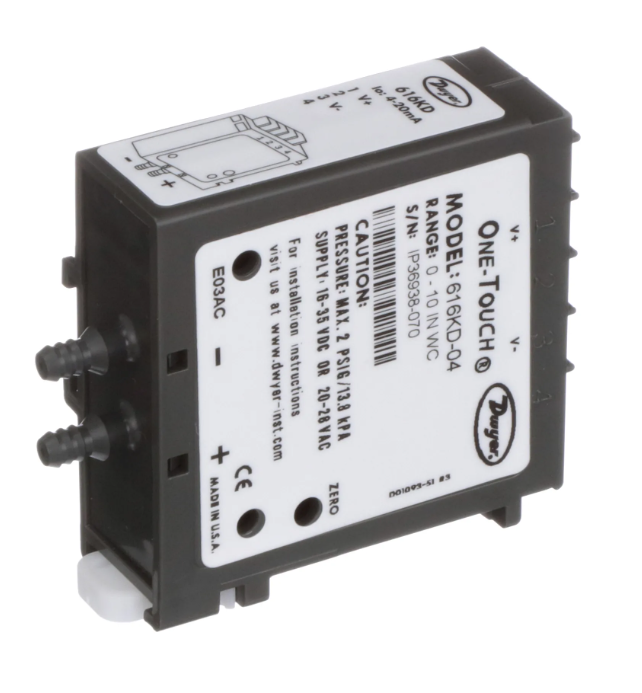

Dwyer 616KD-04 | Differential Pressure Transmitter | 0 to 10 in w.c., 4-20 mA, DIN Rail

Name: Dwyer 616KD-04 | Differential Pressure Transmitter | 0 to 10 in w.c., 4-20 mA, DIN Rail
Brand: Dwyer
SKU: 616KD-04
Availability: OutOfStock

Part Number : 616KD-04

Ranged 0 to 10 in w.c. with 4-20 mA output, the Dwyer 616KD-04 DIN-rail differential pressure transmitter (Series 616KD) uses One-Touch push-button calibration: let it settle at zero reference pressure, press the button, and zero and span are set.

0 to 10 in w.c. range, 4-20 mA output (616KD-04)
Supply: 20-28 VAC or 16-35 VDC (616KD-04)
DIN rail mounting with terminal block wiring on the 616KD-04
IP20 protection (616KD-04)
No turn pots or separate calibration devices needed for the 616KD-04

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Part Number	616KD-04
Brand	Dwyer
Range	0 to 10 in w.c.
Output	4-20 mA
Series	616KD
Supply Voltage	20-28 VAC / 16-35 VDC
Mounting	DIN rail
Termination	Terminal block
Protection	IP20
Calibration	One-Touch push button, zero and span

Simple calibration push-button sets back zero and span, saving time installing and over the service life
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing
Side mounted push button zero (-A and -B models only)
