Dwyer 424-5 | Inclined-Vertical Manometer | 0-2.0" Incl. / 2.1-5" Vert. w.c.

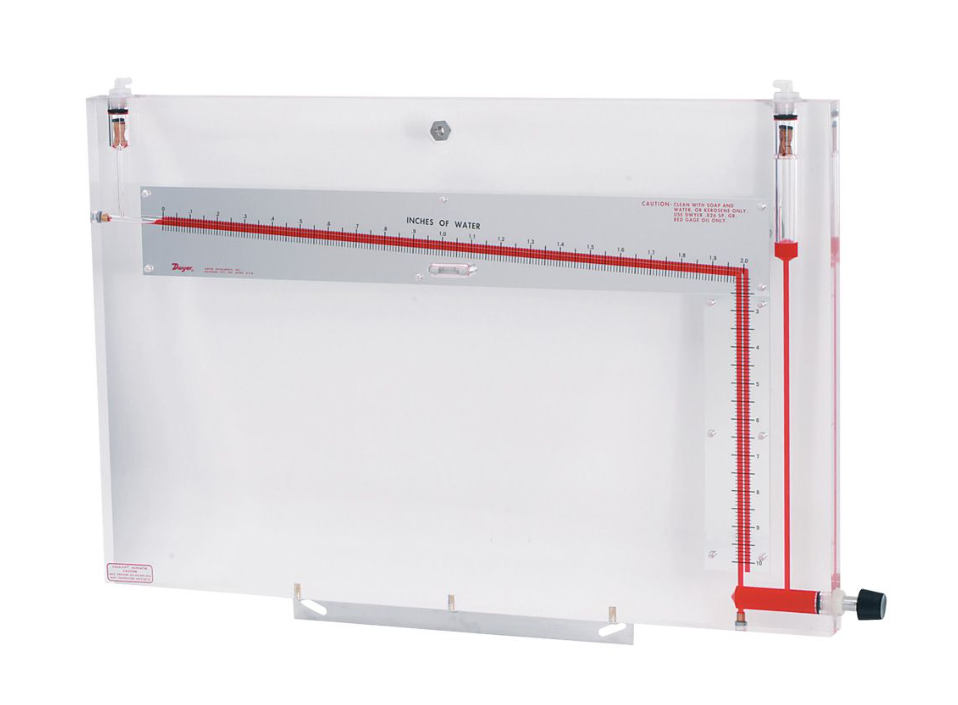

The Dwyer 424-5 uses a long 20" inclined scale for 0-2.0" w.c., plus a 2.1-5" w.c. vertical section, giving fine resolution in the critical low part of the range.
- 424-5 inclined section: 0-2.0" w.c., 0.01" divisions, 20" scale
- 424-5 vertical section: 2.1-5" w.c., 0.10" divisions, 3-1/4" scale
- Accuracy 0.25% for differential measurement (424-5)
- Maximum pressure 5" of H2O (424-5)
- 20" inclined bore magnifies fluid movement in the low range (424-5)
- Specifications
- Features
- Downloads
| Part Number | 424-5 |
| Brand | Dwyer |
| Series | Series 420 |
| Type | Inclined-Vertical Manometer |
| Accuracy | 0.25% |
| Maximum Pressure | 5 in H2O |
| Measurement | Differential |
| Inclined Range | 0-2.0" w.c. |
| Inclined Division | 0.01" |
| Inclined Scale | 20" |
| Vertical Range | 2.1-5" w.c. |
| Vertical Division | 0.10" |
| Vertical Scale | 3-1/4" |
- The 1-1/4" thick acrylic plastic body is a sturdy, nearly indestructible, stable piece of plastic that is completely devoid of any chance of distortion.
- The 3/16" BORES, ACCURATE TO ±.0002" are inherently straight and won't need to be re-calibrated due to distortion.
- LEVEL GROUND GLASS BUBBLE It is 1-1/2" long by.375" in diameter, sensitive to 115–125 sec./2 MM, and has two red lines for simple alignment and visibility.
- To obtain PARALLAX-FREE READING, which maximizes accuracy and consistency, just align the meniscus with the scale's polished aluminum reflection.
- For ideal readability, SELECTED GAGE FLUID with good wetability properties creates a steady, well-shaped meniscus.
- For simple zeroing, use the O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT.
- To ensure that the equipment satisfies the highest standards, PRECISION BUILT.
