Dwyer Instruments 350-AF | Inclined air filter gage | Range 0-4" w.c. | 4-1/2" inclined scale

Name: Dwyer Instruments 350-AF | Inclined air filter gage | Range 0-4" w.c. | 4-1/2" inclined scale
Brand: Dwyer
SKU: 350-AF
Availability: OutOfStock

Part Number : 350-AF

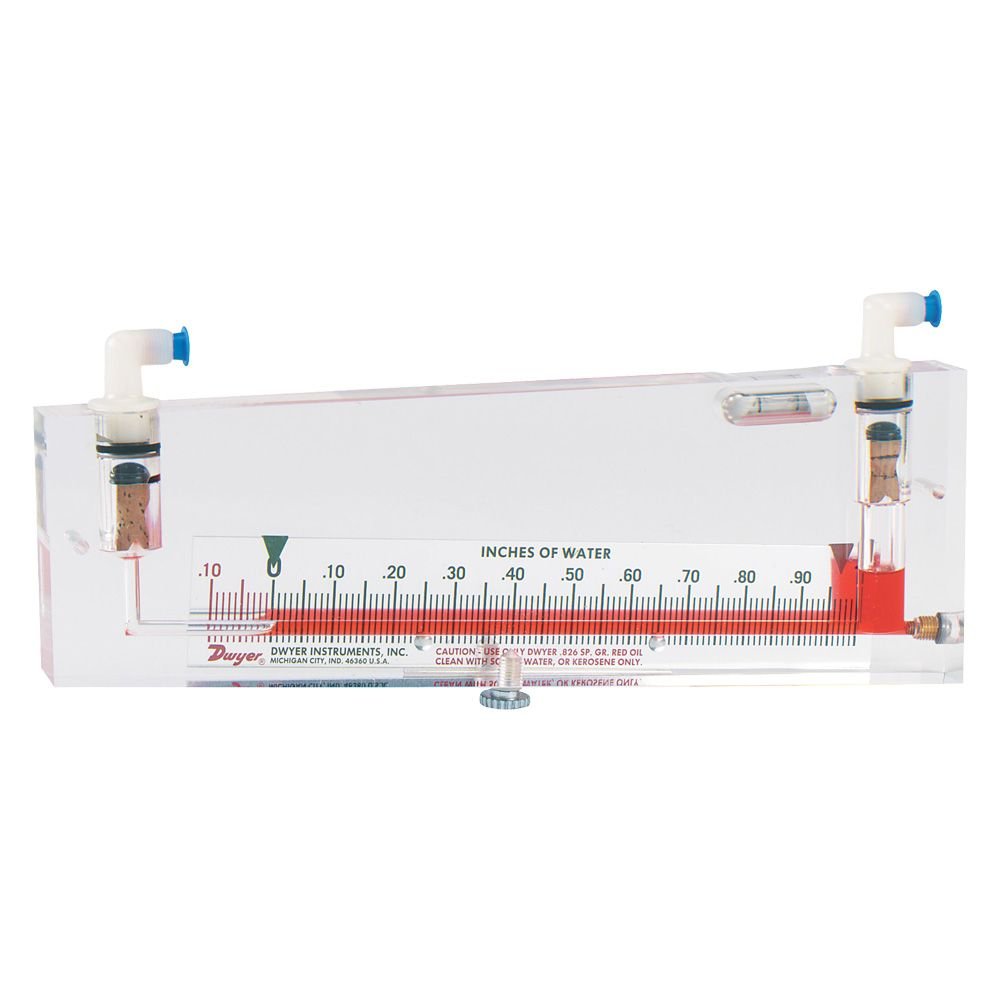

An inclined manometer air filter gauge is the Dwyer 350-AF. Precision-machined from 1" thick solid acrylic plastic, the fluid bore is drilled to ±.0002" to ensure accuracy for the rest of its life. Damage or manipulation is prevented by the glass spirit level. The scale's mirror-polished chrome-plated brass construction allows for parallax-free reading by reflection alignment of the meniscus.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2%
Range	0-4" w.c.
Scale	Inclined: 4-1/2"
Series	Family: Dwyer Instruments Miscellaneous
Temperature Range	-20 to 150° F
Type	Inclined Manometer Air Filter Gage
Weight	4-11 lb-oz

It is a dependable tool with high precision and ease of use that will last for many years of use.
It is possible to read minute pressure variations on an easy-to-see, polished inclined scale.
Without moving parts, there is no need for calibration or wear and tear.
