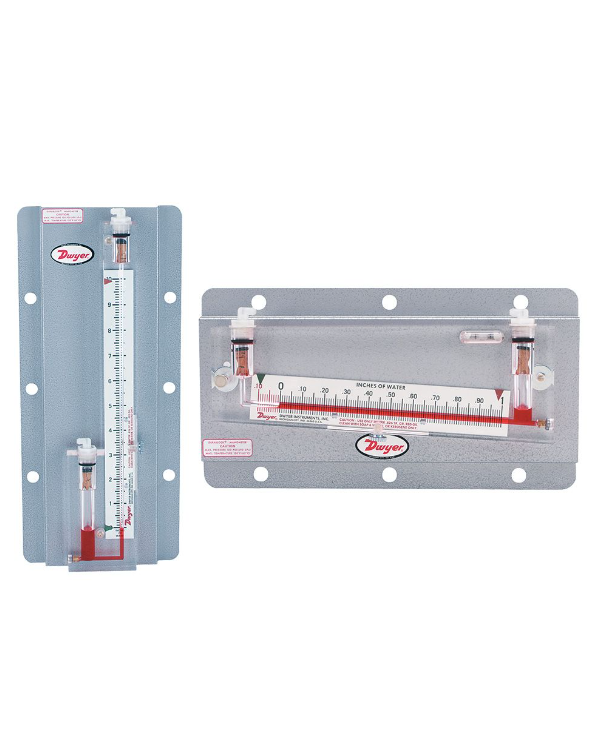

Dwyer 201 | Inclined Stationary Manometer | .05-0-.50" w.c., 5-1/2" Scale
With a .05-0-.50" w.c. range on a 5-1/2" scale, the Dwyer 201 is a Series 200 Durablock inclined stationary gage for low-range air and gas pressures, positive, negative or differential.
- Range .05-0-.50" w.c., .01" minor divisions
- 5-1/2" inclined scale on the 201
- Precision-machined acrylic bore and well on the 201
- Weighs 2 lb 12 oz
- Specifications
- Features
- Downloads
| Part Number | 201 |
| Brand | Dwyer |
| Series | Series 200 Durablock |
| Type | Inclined Tube Manometer |
| Range | .05-0-.50" w.c. |
| Weight | 2 lb 12 oz |
| Minor Division | .01" |
| Scale Length | 5-1/2" |
- .01 minor division, 5-1/2" scale, solid plastic stationary gauge, w.c. range of.05-0-.50", weight 2.12 lbs.
- 1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
- Without any kinks or dents, the drilled bore is accurate to ±.0002" and won't need to be recalibrated due to distortion.
- Particular Gauge For the most precise readability, a fluid with good wetability properties generates a consistent, well-shaped meniscus.
- Easily zero in with these polished aluminum adjustable reflective scales that lock with a thumbscrew.
- To get optimal precision and consistency in parallax-free reading, just align the meniscus with the picture reflected in the scale.
- Over-Pressure Safety Traps stop fluid loss brought on by pressure surges or over-range pressures. (Not necessary for No. 215)
- For inclined style gauges, leveling adjustment is as easy as removing a locking thumb screw on the side or bottom of the gauge and adjusting in accordance with the integrated.
