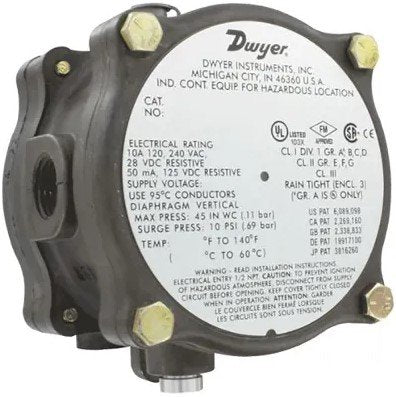

Dwyer 1950G-5-B-24 | Explosion-Proof Differential Pressure Switch | 1.4-5.5 in w.c., 24 VDC, ATEX
The Dwyer 1950G-5-B-24 is an adjustable, waterproof and explosion-proof differential pressure switch rated 24 VDC, with a 1.4-5.5 in w.c. (inH2O) switching range and a Buna-N diaphragm. It is compatible with natural gas.
- 1.4-5.5 in w.c. range on the 1950G-5-B-24
- Buna-N diaphragm
- 1/8 in NPT female process ports; screw-clamp terminal blocks
- UL listed for Class I Groups A-D, Class II Groups E-G and Class III atmospheres (1950G-5-B-24)
- CSA and FM approved; ATEX and IECEx compliant
- Specifications
- Features
- Downloads
| Part Number | 1950G-5-B-24 |
| Brand | Dwyer |
| Series | 1950G |
| Range | 1.4-5.5 in w.c. |
| Process Connection | 1/8 in NPT female |
| Electrical Connection | Screw-clamp terminal blocks |
| Electrical Rating | 24 VDC |
| Hazardous Area | Class I Groups A-D; Class II Groups E, F, G; Class III; ATEX/IECEx |
| Diaphragm | Buna-N |
| Gas Compatibility | Natural gas |
- Suitable for natural gas.
- Adjustments may be made more easily without opening or disassembling the enclosure thanks to the external set point screw's convenient access.
- An easily accessible power source makes installation easier.
