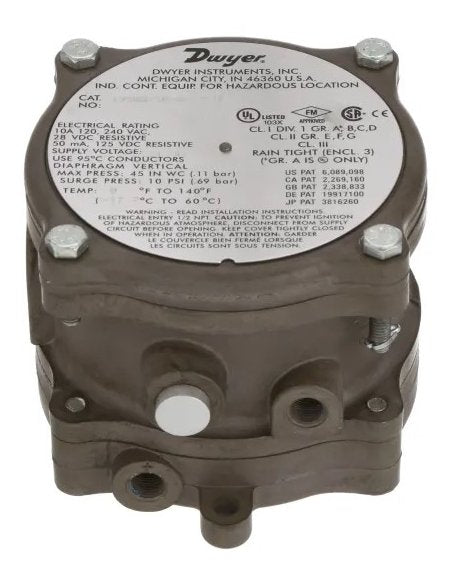

Dwyer 1950G-20-B-24-NA | Explosion-Proof Differential Pressure Switch | 4-20 in w.c., Natural Gas
The Dwyer 1950G-20-B-24-NA is a Series 1950G explosion-proof differential pressure switch with a 4-20 in w.c. range, adding natural gas compatibility to the Series 1950 design. The 1950G-20-B-24-NA is rain-tight for outdoor installation and has an SPDT relay inside an aluminium housing.
- Range of the 1950G-20-B-24-NA: 4-20 in w.c.
- UL listed for Class I Groups A-D, Class II Groups E-G and Class III atmospheres (1950G-20-B-24-NA)
- CSA and FM approved for Class I Div 1 Groups B-D; ATEX (Directive 2014/34/EU) compliant (1950G-20-B-24-NA)
- Removing the top plate gives access to the SPDT relay and supply terminals (1950G-20-B-24-NA)
- Captive cover screw; set point adjusts without dismantling the enclosure (1950G-20-B-24-NA)
- Series supply options: 24 VDC, 120 or 240 VAC (1950G-20-B-24-NA)
- Specifications
- Features
- Downloads
| Part Number | 1950G-20-B-24-NA |
| Brand | Dwyer |
| Series | 1950G |
| Range | 4-20 in w.c. |
| Relay | SPDT |
| Housing | Aluminium, explosion-proof, rain-tight |
| Hazardous Area | Class I Groups A-D; Class II Groups E, F, G; Class III; ATEX |
| Gas Compatibility | Natural gas |
- Suitable for natural gas.
- Adjustments may be made more easily without opening or disassembling the enclosure thanks to the external set point screw's convenient access.
- An easily accessible power source makes installation easier.
