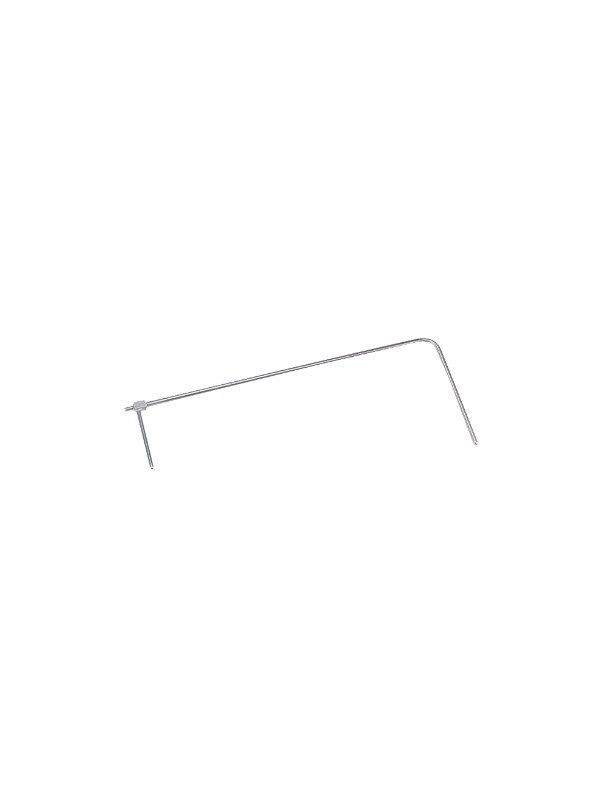

Dwyer 166-6-CF | Pocket-Size Pitot Tube | 3" Tip, 1/8" Dia., CF
The Dwyer 166-6-CF is a 1/8" diameter pocket-size Pitot tube with a 3" tip and a 1/8" male NPT compression fitting to hold it in the duct port.
- 3" tip, 1/8" tube diameter
- 1/8" male NPT compression fitting fitted to the 166-6-CF
- Corrosion-resistant stainless steel construction (166-6-CF)
- Static pressure port parallel to the sensing tube for fast alignment (166-6-CF)
- Maximum operating temperature 1500 °F for the 166-6-CF
- Specifications
- Features
- Downloads
| Part Number | 166-6-CF |
| Brand | Dwyer |
| Type | Pocket-Size Pitot Tube |
| Process Connection | 1/8" male NPT compression fitting |
| Material | Stainless steel |
| Maximum Operating Temperature | 1500 °F |
| Tube Diameter | 1/8" |
| Tip Length | 3" |
- Minimal sensitivity to 15 degrees of misalignment.
- The ASHRAE tip design eliminates the need for calibration.
- For leak-proof performance, use connections with silver solder.
- Versions with a 1500°F (815.5°C) rating for 5/16"
