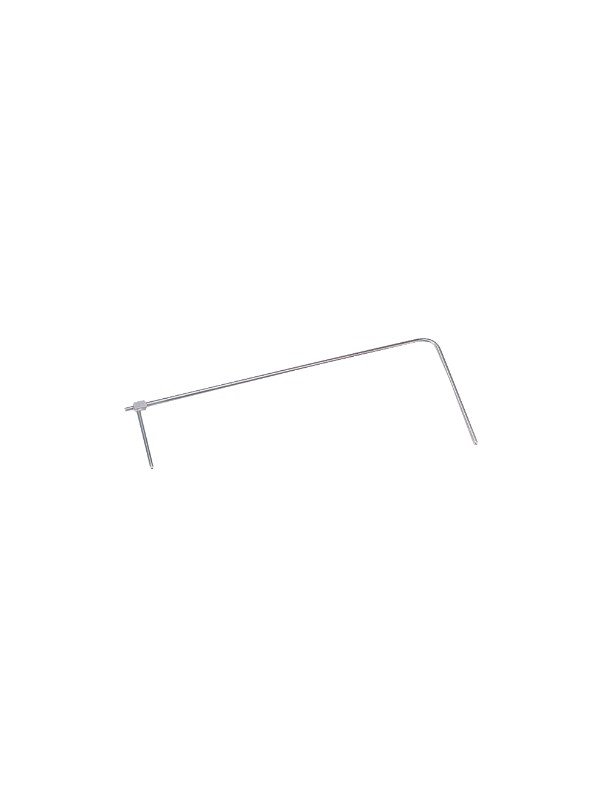

Dwyer 160-8 | Stainless Steel Pitot Tube | 8-5/8" Insertion, 5/16" Dia.
The Dwyer 160-8 is a compact stainless steel Pitot tube with a 8-5/8" insertion length and 5/16" tube, suited to ducts of 10" diameter and larger.
- 8-5/8" insertion length, 5/16" tube diameter
- Insertion-depth graduations permanently etched along the 8-5/8" shaft
- Static pressure port parallel to the sensing tube for quick alignment of the 160-8
- Corrosion-resistant stainless steel, rated to 1500 °F (160-8)
- Approvals listed for the 160-8: Standards CE, ASHRAE, RoHS
- Specifications
- Features
- Downloads
| Part Number | 160-8 |
| Brand | Dwyer |
| Type | Pitot Tube |
| Approvals | Standards CE, ASHRAE, RoHS |
| Insertion Length | 8-5/8" |
| Material | Stainless steel |
| Maximum Operating Temperature | 1500 °F |
| Tube Diameter | 5/16" |
| Minimum Duct Diameter | 10" |
- Minimal sensitivity to 15 degrees of misalignment.
- The ASHRAE tip design eliminates the need for calibration.
- For leak-proof performance, use connections with silver solder.
- Versions with a 1500°F (815.5°C) rating for 5/16"
